BGL2 Class Reference

A second implementation of the BGL model, for testing purposes. More...

Inheritance diagram for BGL2:
Inheritance graph
[legend]

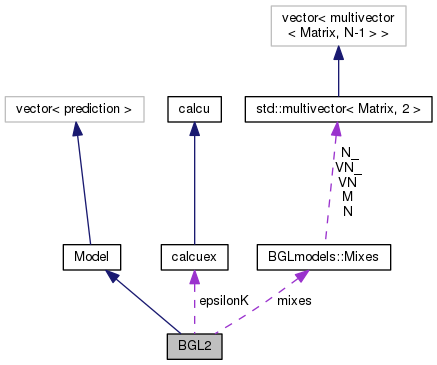

Collaboration diagram for BGL2:
Collaboration graph
[legend]

Public Member Functions

 BGL2 (int genL=2, int genQ=2, int lup=0, int qup=0, int mssm=0)

 ~BGL2 ()

parameters generateparameters (int max=0) const

parameters getlist (const parameters &p) const

ex mesonmixing (ex mesonmass, const Fermion &f1, const Fermion &f2) const

double bsgammawidth (double tanb_, double McH_, double MR_, double MI_, int option=0)

double epsK (double tanb_, double McH_, double MR_, double MI_, int option=0)

- Public Member Functions inherited from Model
 Model ()

virtual ~Model ()

virtual int veto (const parameters &p, int max=0) const

double likelihood (const parameters &p, bool check=1, int max=0) const
 calculates the probability of getting all the experimental measures if the model describes the reality More...

double loglike (const parameters &p, bool check=1, int max=0) const


Public Attributes

const double planck

const possymbol GF

const possymbol MZ

const possymbol MW

const possymbol Mh

const constant Mpip

const constant Mpi0

const constant MBp

const constant MB0

const constant MBs0

const constant MKp

const constant MK0

const constant MDp

const constant MD0

const constant MDsp

const constant MDs0

const constant Fpi

const constant FB

const constant FBs

const constant FK

const constant FD

const constant FDs

ex cos2

ex g

ex alpha

const possymbol tanb

const possymbol cp

const possymbol McH

const possymbol MR

const possymbol MI

const possymbol rho

const realsymbol Tparam

const realsymbol Sparam

const realsymbol QCD1

const realsymbol QCD2

possymbol Mu [3]

possymbol Md [3]

vector< Boson > bosons

lst replacements

ex Btaunu

ex BR_Htotaunu

ex BR_toptoHq

ex BtotaunuR

ex BtoDtaunuR

ex BtoD2taunuR

const Mixes mixes

lst conjtoabs

realsymbol mu

int iBtaunu

int iBDtaunu

int iBD2taunu

vector< int > BGLtype

ROOT::Math::Interpolator inter1

ROOT::Math::Interpolator inter2

ROOT::Math::Interpolator Mu_ [3]

ROOT::Math::Interpolator Md_ [3]

double mmmax

double stepsize

calcuex * epsilonK

- Public Attributes inherited from Model
TRandom3 * r


Detailed Description

A second implementation of the BGL model, for testing purposes.

Definition at line 28 of file draw.cpp.

Constructor & Destructor Documentation

BGL2::BGL2 ( int  genL = 2,
int  genQ = 2,
int  lup = 0,
int  qup = 0,
int  mssm = 0
)
inline

Definition at line 31 of file draw.cpp.

References BGLmodels::Boson::C, BGLmodels::cParticle, BGLmodels::fElectron, BGLmodels::fMuon, BGLmodels::fTau, BGLmodels::hLeft, BGLmodels::hRight, BGLmodels::iDown, BGLmodels::iUp, BGLmodels::M_MW, BGLmodels::M_MZ, BGLmodels::Boson::mass, BGLmodels::Boson::reset(), BGLmodels::Boson::s, BGLmodels::sScalar, BGLmodels::sVector, BGLmodels::tLepton, and BGLmodels::tQuark.

31  :
32  planck(6.58211928e-25),
33  GF("G_F"),
34  MZ("M_Z"),
35  MW("M_W"),
36  Mpip("Mpip",0.1396,"M_{\\pi^+}",domain::real),
37  Mpi0("Mpi0",0.1349766,"M_{\\pi^0}",domain::real),
38  MBp("MBp",5.279,"M_{B^+}",domain::real),
39  MB0("MB0",5.2795,"M_{B^0}",domain::real),
40  MBs0("MBs0",5.3663,"M_{B_s^0}",domain::real),
41  MKp("MKp",0.493677,"MKp",domain::real),
42  MK0("MK0",0.497614,"MK0",domain::real),
43  MDp("MDp",1.86957,"MDp",domain::real),
44  MD0("MD0",1.86480,"MD0",domain::real),
45  MDsp("MDsp",1.96845,"MDsp",domain::real),
46  MDs0("MDs0",0),
47  Fpi("Fpi",0.132,"Fpi",domain::real),
48  FB("FB",0.189,"FB",domain::real),
49  FBs("FBs",0.225,"FBs",domain::real),
50  FK("FK",0.159,"FK",domain::real),
51  FD("FD",0.208,"FD",domain::real),
52  FDs("FDs",0.248,"FDs",domain::real),
53  //alpha(7.297352e-3*4*M_PI),
54  cos2(pow(MW/MZ,2)),
55  g(sqrt(GF*8/sqrt(ex(2)))*MW),
56  //g(sqrt(4*Pi*alpha/(1-cos2))),
57  tanb("tg\\beta"),
58  cp("cp"),
59  McH("M_{H^+}"),
60  MR("M_{R}"),
61  MI("M_{I}"),
62  Tparam("T_param"),
63  Sparam("S_param"),
64  QCD1("QCD_1"),
65  QCD2("QCD_2"),
66  mixes(tanb,cp, genL,genQ, lup, qup, mssm),
67  mu("\\mu"),
68  BGLtype(4,0),
69  mmmax(1000),
70  stepsize(1e-2)
71  {
72  alpha=pow(g,2)*(1-cos2)/(4*Pi);
73  replacements.append(GF==1.166371e-5);
74  replacements.append(MZ==M_MZ);
75  replacements.append(MW==M_MW);
76
77  mixes.appendtolst(replacements);
78
79  replacements.append(Pi==M_PI);
80  replacements.append(sqrt(ex(2))==sqrt(2));
81  replacements.append(Pi==M_PI);
82  replacements.append(sqrt(ex(2))==sqrt(2));
83
84  Boson boson;
85
86  realsymbol q3("q3");
87  ex vq3=dirac_slash(q3,4);
88  varidx jmu(mu,4,1);
89
90  for(uint i=0;i<2;i++)
91  for(uint j=0;j<3;j++)
92  for(uint k=0;k<3;k++){
93  conjtoabs.append(conjugate(mixes.V[i][j][k])==pow(abs(mixes.V[i][j][k]),2)/mixes.V[i][j][k]);
94  }
95
96  //W+ boson
97  boson.mass=MW;
98  boson.s=sVector;
99
100  for(uint t=tLepton;t<=tQuark;t++) boson.C[t][iUp][iDown][hLeft]=mixes.V[t]*Matrix(g/sqrt(ex(2)));
101  Boson wboson=boson;
102  bosons.push_back(boson);
103  boson.reset();
104
105  //H+ boson
106  boson.mass=McH;
107  boson.s=sScalar;
108
109  for(uint t=tLepton;t<=tQuark;t++)
110  for(uint i=iUp;i<=iDown;i++) boson.C[t][iUp][iDown][i]=mixes.VN[t][i]*Matrix(g/MW/sqrt(ex(2)));
111  Boson chiggs=boson;
112  bosons.push_back(boson);
113  boson.reset();
114
115  for(int b=bosons.size()-1;b>=0;b--){
116  boson.mass=bosons[b].mass;
117  boson.s=bosons[b].s;
118  if(boson.s==sVector)
119  for(uint t=tLepton;t<=tQuark;t++)
120  for(uint i=iUp;i<=iDown;i++)
121  for(uint j=iUp;j<=iDown;j++)
122  for(uint h=hLeft;h<=hRight;h++){
123  boson.C[t][i][j][h]=bosons[b].C[t][j][i][h].conjugate();
124  }
125  else for(uint t=tLepton;t<=tQuark;t++)
126  for(uint i=iUp;i<=iDown;i++)
127  for(uint j=iUp;j<=iDown;j++)
128  for(uint h=hLeft;h<=hRight;h++){
129  boson.C[t][i][j][hLeft]=bosons[b].C[t][j][i][hRight].conjugate();
130  boson.C[t][i][j][hRight]=bosons[b].C[t][j][i][hLeft].conjugate();
131  }
132  bosons.push_back(boson);
133  boson.reset();
134  }
135
136  //(R+iI)/sqrt(2) boson
137  boson.mass=MR;
138  boson.s=sScalar;
139
140  for(uint t=tLepton;t<=tQuark;t++){
141  boson.C[t][iDown][iDown][hRight]=mixes.N[t][iDown]*Matrix(g/MW/ex(2));
142  boson.C[t][iUp][iUp][hLeft]=mixes.N[t][iUp].conjugate()*Matrix(g/MW/ex(2));
143  boson.C[t][iDown][iDown][hLeft]=mixes.N[t][iDown].conjugate()*Matrix(g/MW/ex(2));
144  boson.C[t][iUp][iUp][hRight]=mixes.N[t][iUp]*Matrix(g/MW/ex(2));
145  }
146  bosons.push_back(boson);
147  boson.reset();
148
149  //(R+iI)/sqrt(2) boson
150  boson.mass=MI;
151  boson.s=sScalar;
152
153  for(uint t=tLepton;t<=tQuark;t++){
154  boson.C[t][iDown][iDown][hRight]=mixes.N[t][iDown]*Matrix(I*g/MW/ex(2));
155  boson.C[t][iUp][iUp][hLeft]=mixes.N[t][iUp].conjugate()*Matrix(I*g/MW/ex(2));
156  boson.C[t][iDown][iDown][hLeft]=mixes.N[t][iDown].conjugate()*Matrix(-I*g/MW/ex(2));
157  boson.C[t][iUp][iUp][hRight]=mixes.N[t][iUp]*Matrix(-I*g/MW/ex(2));
158  }
159  bosons.push_back(boson);
160  boson.reset();
161
162  Fermion electron(tLepton,iDown,fElectron);
163  Fermion electronR(tLepton,iDown,fElectron,cParticle,hRight);
164
165  Fermion muon(tLepton,iDown,fMuon);
166  Fermion muonR(tLepton,iDown,fMuon,cParticle,hRight);
167
168  Fermion tau(tLepton,iDown,fTau);
169  Fermion tauR(tLepton,iDown,fTau,cParticle,hRight);
170  Fermion neutrino(tLepton,iUp);
171  Fermion neutrinotau(tLepton,iUp,fTau);
172  Fermion neutrinomuon(tLepton,iUp,fMuon);
173  Fermion neutrinoe(tLepton,iUp,fElectron);
174
175  Fermion up(tQuark,iUp,fElectron);
176  Fermion down(tQuark,iDown,fElectron);
177  Fermion bottom(tQuark,iDown,fTau);
178  Fermion strange(tQuark,iDown,fMuon);
179  Fermion charm(tQuark,iUp,fMuon);
180  Fermion top(tQuark,iUp,fTau);
181
182  Meson Pi0d(down,down,Mpi0,Fpi);
183  Meson Pi0u(down,down,Mpi0,Fpi);
184  Meson Pip(up,down,Mpip,Fpi);
185  Meson Pim(down,up,Mpip,Fpi);
186
187  Meson K0(down,strange,MK0,FK);
188  Meson Kp(up,strange,MKp,FK);
189
190  Meson D0(charm,up,MD0,FD);
191  Meson Dp(charm,down,MDp,FD);
192  Meson Dsp(charm,strange,MDsp,FDs);
193
194  Meson B0(down,bottom,MB0,FB);
195  Meson Bp(up,bottom,MBp,FB);
196  Meson Bs0(strange,bottom,MBs0,FBs);
197
198  lst sb;
199  //sb.append(mixes.M[tQuark][iUp][0][0]==0);
200  sb.append(pow(abs(mixes.V[0][2][2]),2)==1-pow(abs(mixes.V[0][1][2]),2)-pow(abs(mixes.V[0][0][2]),2));
201  sb.append(pow(abs(mixes.V[0][2][1]),2)==1-pow(abs(mixes.V[0][1][1]),2)-pow(abs(mixes.V[0][0][1]),2));
202
203  //cout<<pow(sqrt(2)/8*pow(g/MW,2),2)<<endl;
204  //cout<<pow(1.166,2)<<endl;
205  double fK=0.156;
206  ex KKbar=ex(std::pow(fK,2))*mesonmixing(MK0,strange,down);
207  ex eK=0.94*imag_part(KKbar)/3.5e-15/sqrt(2);
208  cout<<"KKbar "<<KKbar<<endl;
209  KKbar=expand(KKbar.subs(replacements).subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
210  KKbar=expand(KKbar.evalf());
211  ex aKKbar=sqrt(KKbar.real_part()*KKbar.real_part()+KKbar.imag_part()*KKbar.imag_part());
212
213  eK=0.94*imag_part(KKbar)/3.5e-15/sqrt(2);
214  eK=eK.subs(replacements).real_part();
215  eK=collect_common_factors(expand(eK.evalf()));
216  cout<<"eK"<<eK<<endl;
217  //add("a_eK",abs(eK),new limitedobs(2.2e-3));
218  epsilonK=new calcuex(new limitedobs(2*0.011e-3),abs(eK));
219
220
221 }
