BGLmodels Namespace Reference

Classes
class	BGL
	Implementation of the BGL model. More...
class	Boson
	Gauge boson. More...
class	calcuBmumu
	calculus of the constraints coming from the B->mu mu decay More...
class	calcubtosgamma2
	calculus of the constraints coming from the b->s gamma decay More...
class	calcuOblique
	calculus of the constraints coming from the oblique parameters More...
class	Fermion
	a fermion properties More...
class	Matrixx
	a class to represent the mixing matrices VCKM and VPMNS More...
class	Meson
	a meson properties More...
class	Mixes
	definition of the couplings for the different BGL models More...

Typedefs
typedef std::complex< double >	CD
typedef std::array< CD, 3 >	Vector3c
typedef std::array< std::array< CD, 3 >, 3 >	Matrix3c

Enumerations
enum	FType { tLepton, tQuark }
enum	FIsospin { iUp, iDown }
enum	FFlavour { fElectron, fMuon, fTau, fAny }
enum	FCharge { cParticle, cAntiParticle }
enum	FHelicity { hLeft, hRight, hAny }
enum	BSpin { sScalar, sVector, sAny }

Functions
const Matrixx	Vud (13.04 *M_PI/180, 0.201 *M_PI/180, 2.38 *M_PI/180, 1.2)
constexpr double	C7SM (double x)
constexpr double	C8SM (double x)

Variables
constexpr double	M_GF =1.166371e-5
constexpr double	M_MZ =91.1876
constexpr double	M_MW =80.398
constexpr double	M_cos2 =std::pow(M_MW/M_MZ,2)
constexpr double	M_Mu [3] ={2.4e-3,1.29,172.9}
constexpr double	M_Md [3] ={5.3e-3,95e-3,4.2}
constexpr double	M_Ml [3] ={0.510998910e-3,105.6583715e-3,1776.82e-3}
const Matrixx	Vnl =Matrixx(33.6*M_PI/180,9.11*M_PI/180,40.4*M_PI/180,M_PI/4).conjugate()
constexpr double	mt_mt =163.3
constexpr double	mt_mW =174.2
constexpr double	mt_mb =261.8
constexpr double	C7SM_MW =C7SM(std::pow(mt_mW/M_MW,2))
constexpr double	C7SM_Mt =C7SM(std::pow(mt_mt/M_MW,2))
constexpr double	C7SM_Mb =-0.353
constexpr double	C8SM_MW =C8SM(std::pow(mt_mW/M_MW,2))
constexpr double	C8SM_Mt =C8SM(std::pow(mt_mt/M_MW,2))
constexpr double	C8SM_Mb =C8SM(std::pow(mt_mb/M_MW,2))

Typedef Documentation

typedef std::complex<double> BGLmodels::CD

Definition at line 65 of file Formulas.h.

typedef std::array<std::array<CD,3>,3> BGLmodels::Matrix3c

Definition at line 67 of file Formulas.h.

typedef std::array<CD,3> BGLmodels::Vector3c

Definition at line 66 of file Formulas.h.

Enumeration Type Documentation

enum BGLmodels::BSpin

Enumerator
sScalar
sVector
sAny

Definition at line 27 of file Formulas.h.

{sScalar, sVector,sAny};

enum BGLmodels::FCharge

Enumerator
cParticle
cAntiParticle

Definition at line 25 of file Formulas.h.

{cParticle,cAntiParticle};

enum BGLmodels::FFlavour

Enumerator
fElectron
fMuon
fTau
fAny

Definition at line 24 of file Formulas.h.

{fElectron,fMuon,fTau,fAny};

enum BGLmodels::FHelicity

Enumerator
hLeft
hRight
hAny

Definition at line 26 of file Formulas.h.

{hLeft,hRight,hAny};

enum BGLmodels::FIsospin

Enumerator
iUp
iDown

Definition at line 23 of file Formulas.h.

{iUp,iDown};

enum BGLmodels::FType

Enumerator
tLepton
tQuark

Definition at line 22 of file Formulas.h.

{tLepton,tQuark};

Function Documentation

constexpr double BGLmodels::C7SM

(

double

x

)

Definition at line 264 of file Formulas.h.

                               {
        return ((1/(x-1)+3)*x*std::log(x)+(-8*x*x-5*x+7)/6)*x/4/std::pow(x-1,3);
        }

constexpr double BGLmodels::C8SM

(

double

x

)

Definition at line 268 of file Formulas.h.

                               {
        return (-3/(x-1)*x*std::log(x)+(-x*x+5*x+2)/2)*x/4/std::pow(x-1,3);
        }

const Matrixx BGLmodels::Vud	(	13.04 *M_PI/	180,
		0.201 *M_PI/	180,
		2.38 *M_PI/	180,
		1.	2
	)

Referenced by BGLmodels::calcuBmumu::calcuBmumu(), BGLmodels::calcubtosgamma2::calcubtosgamma2(), main(), BGLmodels::calcubtosgamma2::operator()(), and BGLmodels::calcubtosgamma2::width().

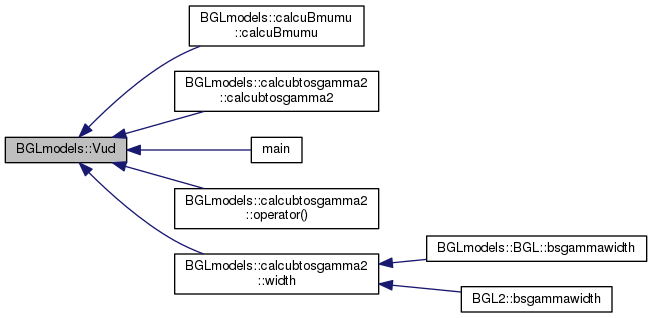

Here is the caller graph for this function:

Variable Documentation

constexpr double BGLmodels::C7SM_Mb =-0.353

Definition at line 272 of file Formulas.h.

constexpr double BGLmodels::C7SM_Mt =C7SM(std::pow(mt_mt/M_MW,2))

Definition at line 272 of file Formulas.h.

Referenced by BGLmodels::calcubtosgamma2::calcubtosgamma2(), BGLmodels::calcubtosgamma2::operator()(), and BGLmodels::calcubtosgamma2::width().

constexpr double BGLmodels::C7SM_MW =C7SM(std::pow(mt_mW/M_MW,2))

Definition at line 272 of file Formulas.h.

constexpr double BGLmodels::C8SM_Mb =C8SM(std::pow(mt_mb/M_MW,2))

Definition at line 273 of file Formulas.h.

constexpr double BGLmodels::C8SM_Mt =C8SM(std::pow(mt_mt/M_MW,2))

Definition at line 273 of file Formulas.h.

Referenced by BGLmodels::calcubtosgamma2::calcubtosgamma2(), BGLmodels::calcubtosgamma2::operator()(), and BGLmodels::calcubtosgamma2::width().

constexpr double BGLmodels::C8SM_MW =C8SM(std::pow(mt_mW/M_MW,2))

Definition at line 273 of file Formulas.h.

constexpr double BGLmodels::M_cos2 =std::pow(M_MW/M_MZ,2)

Definition at line 60 of file Formulas.h.

constexpr double BGLmodels::M_GF =1.166371e-5

Definition at line 57 of file Formulas.h.

constexpr double BGLmodels::M_Md[3] ={5.3e-3,95e-3,4.2}

Definition at line 62 of file Formulas.h.

constexpr double BGLmodels::M_Ml[3] ={0.510998910e-3,105.6583715e-3,1776.82e-3}

Definition at line 63 of file Formulas.h.

constexpr double BGLmodels::M_Mu[3] ={2.4e-3,1.29,172.9}

Definition at line 61 of file Formulas.h.

constexpr double BGLmodels::M_MW =80.398

Definition at line 59 of file Formulas.h.

Referenced by BGLmodels::BGL::BGL(), and BGL2::BGL2().

constexpr double BGLmodels::M_MZ =91.1876

Definition at line 58 of file Formulas.h.

Referenced by BGLmodels::BGL::BGL(), and BGL2::BGL2().

constexpr double BGLmodels::mt_mb =261.8

Definition at line 262 of file Formulas.h.

constexpr double BGLmodels::mt_mt =163.3

Definition at line 262 of file Formulas.h.

Referenced by BGLmodels::calcubtosgamma2::operator()(), and BGLmodels::calcubtosgamma2::width().

constexpr double BGLmodels::mt_mW =174.2

Definition at line 262 of file Formulas.h.

const Matrixx BGLmodels::Vnl =Matrixx(33.6*M_PI/180,9.11*M_PI/180,40.4*M_PI/180,M_PI/4).conjugate()

Definition at line 98 of file Formulas.h.
