Public Member Functions | Public Attributes | List of all members
BGLmodels::BGL Class Reference

Implementation of the BGL model. More...

#include <BGL.h>

Inheritance diagram for BGLmodels::BGL:
Inheritance graph
[legend]

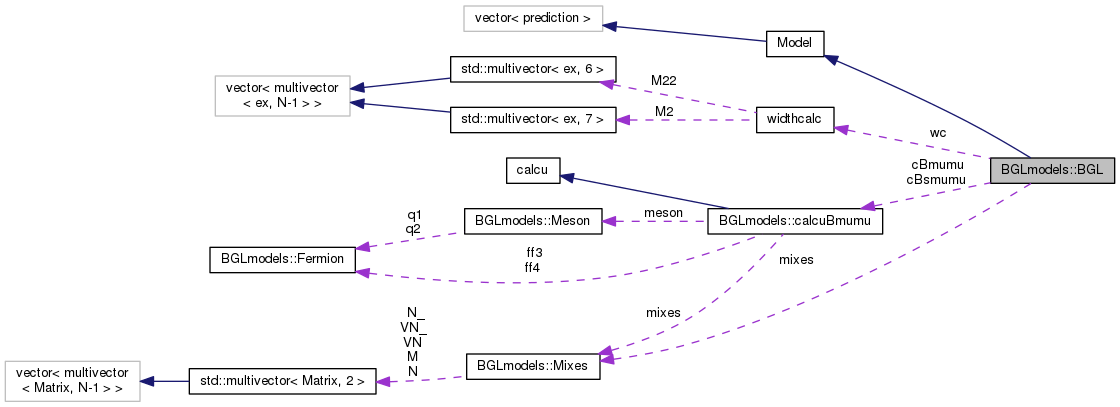

Collaboration diagram for BGLmodels::BGL:
Collaboration graph
[legend]

Public Member Functions

 BGL (int genL=2, int genQ=2, int lup=0, int qup=0, int mssm=0)

 ~BGL ()

ex Y (ex x) const

ex GW (ex x) const

ex GH1 (ex x) const

ex GH2 (ex x) const

ex FW (ex x) const

ex FH1 (ex x) const

ex FH2 (ex x) const

ex Fh1 (ex x) const

ex Fh2 (ex x) const

ex A0 (ex x) const

ex A1 (ex x) const

ex A2 (ex x) const

ex A3 (ex x) const

void add (const char *s, ex pred, observable *ob, bool sb=0)

int veto (const parameters &p, int max=0) const

parameters generateparameters (int max=0) const

parameters getlist (const parameters &p) const

double bsgammawidth (double tanb, double McH, double MR, double MI, int option=0)

ex decaywidth (const Fermion &ff1, const Fermion &ff2, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const

ex get_integral_symb (const multivector< ex, 3 > &a, ex m1) const

ex decaywidthtest2 (const Fermion &ff1) const

ex gRR2 (const Fermion &f1, const Fermion &f3) const

ex tautomu_tautoe () const

ex mesondw (const Meson &meson, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const

ex mesondwtest (const Meson &meson, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const

ex fermiontomeson (const Fermion &ff4, const Fermion &ff3, const Meson &meson, BSpin s=sAny) const

ex fermiontomesontest (const Fermion &ff4, const Fermion &ff3, const Meson &meson, BSpin s=sAny) const

ex mesonmixing (ex mesonmass, const Fermion &f1, const Fermion &f2) const

ex CHdecaycoupling (Boson higgs, const Fermion &ff3, const Fermion &ff4) const

double BranchingRatio (double *xx, double *p)

double topBranchingRatio (double *xx, double *p)

- Public Member Functions inherited from Model
 Model ()

virtual ~Model ()

double likelihood (const parameters &p, bool check=1, int max=0) const
 calculates the probability of getting all the experimental measures if the model describes the reality More...

double loglike (const parameters &p, bool check=1, int max=0) const


Public Attributes

widthcalc wc

const double planck

const possymbol GF

const possymbol MZ

const possymbol MW

const possymbol Mh

const constant Mpip

const constant Mpi0

const constant MBp

const constant MB0

const constant MBs0

const constant MKp

const constant MK0

const constant MDp

const constant MD0

const constant MDsp

const constant MDs0

const constant Fpi

const constant FB

const constant FBs

const constant FK

const constant FD

const constant FDs

ex cos2

ex g

ex alpha

const possymbol tanb

const possymbol cp

const possymbol McH

const possymbol MR

const possymbol MI

const possymbol rho

possymbol Mu [3]

possymbol Md [3]

vector< Boson > bosons

lst replacements

ex Btaunu

ex BR_Htotaunu

ex BR_toptoHq

ex BtotaunuR

ex BtoDtaunuR

ex BtoD2taunuR

const Mixes mixes

lst conjtoabs

realsymbol mu

int iBtaunu

int iBDtaunu

int iBD2taunu

vector< int > BGLtype

double mmmax

double stepsize

calcuBmumu * cBmumu

calcuBmumu * cBsmumu

- Public Attributes inherited from Model
TRandom3 * r


Detailed Description

Implementation of the BGL model.

Definition at line 78 of file BGL.h.

Constructor & Destructor Documentation

BGLmodels::BGL::BGL ( int  genL = 2,
int  genQ = 2,
int  lup = 0,
int  qup = 0,
int  mssm = 0
)
inline

Definition at line 81 of file BGL.h.

References BGLmodels::Boson::C, std::Matrix::conjugate(), BGLmodels::Boson::couplingdaggerL(), BGLmodels::Boson::couplingL(), BGLmodels::Boson::couplingR(), BGLmodels::cParticle, BGLmodels::fElectron, BGLmodels::fMuon, BGLmodels::fTau, BGLmodels::hLeft, BGLmodels::hRight, BGLmodels::iDown, BGLmodels::iUp, BGLmodels::M_MW, BGLmodels::M_MZ, BGLmodels::Boson::mass, BGLmodels::Boson::reset(), BGLmodels::Boson::s, BGLmodels::sScalar, BGLmodels::sVector, BGLmodels::tLepton, and BGLmodels::tQuark.

81  :
82  planck(6.58211928e-25),
83  GF("G_F"),
84  MZ("M_Z"),
85  MW("M_W"),
86  Mpip("Mpip",0.1396,"M_{\\pi^+}",domain::real),
87  Mpi0("Mpi0",0.1349766,"M_{\\pi^0}",domain::real),
88  MBp("MBp",5.279,"M_{B^+}",domain::real),
89  MB0("MB0",5.2795,"M_{B^0}",domain::real),
90  MBs0("MBs0",5.3663,"M_{B_s^0}",domain::real),
91  MKp("MKp",0.493677,"MKp",domain::real),
92  MK0("MK0",0.497614,"MK0",domain::real),
93  MDp("MDp",1.86957,"MDp",domain::real),
94  MD0("MD0",1.86480,"MD0",domain::real),
95  MDsp("MDsp",1.96845,"MDsp",domain::real),
96  MDs0("MDs0",0),
97  Fpi("Fpi",0.132,"Fpi",domain::real),
98  FB("FB",0.189,"FB",domain::real),
99  FBs("FBs",0.225,"FBs",domain::real),
100  FK("FK",0.159,"FK",domain::real),
101  FD("FD",0.208,"FD",domain::real),
102  FDs("FDs",0.248,"FDs",domain::real),
103  //alpha(7.297352e-3*4*M_PI),
104  cos2(pow(MW/MZ,2)),
105  g(sqrt(GF*8/sqrt(ex(2)))*MW),
106  //g(sqrt(4*Pi*alpha/(1-cos2))),
107  tanb("tg\\beta"),
108  cp("cp"),
109  McH("M_{H^+}"),
110  MR("M_{R}"),
111  MI("M_{I}"),
112  mixes(tanb,cp, genL,genQ, lup, qup, mssm),
113  mu("\\mu"),
114  BGLtype(4,0),
115  mmmax(1000),
116  stepsize(1e-2)
117  //muwidth(planck/2.197034e-6)
118  {
119  alpha=pow(g,2)*(1-cos2)/(4*Pi);
120  replacements.append(GF==1.166371e-5);
121  replacements.append(MZ==M_MZ);
122  replacements.append(MW==M_MW);
123
124  mixes.appendtolst(replacements);
125
126  replacements.append(Pi==M_PI);
127  replacements.append(sqrt(ex(2))==sqrt(2));
128
129  //cout<<pow(sqrt(2)/8*pow(g/MW,2),2)<<endl;
130  //cout<<pow(1.166,2)<<endl;
131
132  Boson boson;
133
134  realsymbol q3("q3");
135  ex vq3=dirac_slash(q3,4);
136  varidx jmu(mu,4,1);
137
138  for(uint i=0;i<2;i++)
139  for(uint j=0;j<3;j++)
140  for(uint k=0;k<3;k++){
141  conjtoabs.append(conjugate(mixes.V[i][j][k])==pow(abs(mixes.V[i][j][k]),2)/mixes.V[i][j][k]);
142  }
143  /*
144  //Gamma boson
145  boson.mass=0;
146  boson.s=Boson::vector;
147
148  boson.coupsL[0][0]=Matrix(g*sqrt(1-cos2)*0);
149  boson.coupsL[1][1]=Matrix(g*sqrt(1-cos2)*(-1));
150  boson.coupsL[2][2]=Matrix(g*sqrt(1-cos2)*ex(2)/3);
151  boson.coupsL[3][3]=Matrix(g*sqrt(1-cos2)*ex(-1)/3);
152
153  boson.coupsR[0][0]=Matrix(g*sqrt(1-cos2)*0);
154  boson.coupsR[1][1]=Matrix(g*sqrt(1-cos2)*(-1));
155  boson.coupsR[2][2]=Matrix(g*sqrt(1-cos2)*ex(2)/3);
156  boson.coupsR[3][3]=Matrix(g*sqrt(1-cos2)*ex(-1)/3);
157
158  bosons.push_back(boson);
159  boson.reset();
160  */
161  //W+ boson
162  boson.mass=MW;
163  boson.s=sVector;
164
165  for(uint t=tLepton;t<=tQuark;t++) boson.C[t][iUp][iDown][hLeft]=mixes.V[t]*Matrix(g/sqrt(ex(2)));
166  Boson wboson=boson;
167  bosons.push_back(boson);
168  boson.reset();
169
170  //H+ boson
171  boson.mass=McH;
172  boson.s=sScalar;
173
174  for(uint t=tLepton;t<=tQuark;t++)
175  for(uint i=iUp;i<=iDown;i++) boson.C[t][iUp][iDown][i]=mixes.VN[t][i]*Matrix(g/MW/sqrt(ex(2)));
176  Boson chiggs=boson;
177  bosons.push_back(boson);
178  boson.reset();
179
180  for(int b=bosons.size()-1;b>=0;b--){
181  boson.mass=bosons[b].mass;
182  boson.s=bosons[b].s;
183  if(boson.s==sVector)
184  for(uint t=tLepton;t<=tQuark;t++)
185  for(uint i=iUp;i<=iDown;i++)
186  for(uint j=iUp;j<=iDown;j++)
187  for(uint h=hLeft;h<=hRight;h++){
188  boson.C[t][i][j][h]=bosons[b].C[t][j][i][h].conjugate();
189  }
190  else for(uint t=tLepton;t<=tQuark;t++)
191  for(uint i=iUp;i<=iDown;i++)
192  for(uint j=iUp;j<=iDown;j++)
193  for(uint h=hLeft;h<=hRight;h++){
194  boson.C[t][i][j][hLeft]=bosons[b].C[t][j][i][hRight].conjugate();
195  boson.C[t][i][j][hRight]=bosons[b].C[t][j][i][hLeft].conjugate();
196  }
197  bosons.push_back(boson);
198  boson.reset();
199  }
200
201  //(R+iI)/sqrt(2) boson
202  boson.mass=MR;
203  boson.s=sScalar;
204
205  for(uint t=tLepton;t<=tQuark;t++){
206  boson.C[t][iDown][iDown][hRight]=mixes.N[t][iDown]*Matrix(g/MW/ex(2));
207  boson.C[t][iUp][iUp][hLeft]=mixes.N[t][iUp].conjugate()*Matrix(g/MW/ex(2));
208  boson.C[t][iDown][iDown][hLeft]=mixes.N[t][iDown].conjugate()*Matrix(g/MW/ex(2));
209  boson.C[t][iUp][iUp][hRight]=mixes.N[t][iUp]*Matrix(g/MW/ex(2));
210  }
211  bosons.push_back(boson);
212  boson.reset();
213
214  //(R+iI)/sqrt(2) boson
215  boson.mass=MI;
216  boson.s=sScalar;
217
218  for(uint t=tLepton;t<=tQuark;t++){
219  boson.C[t][iDown][iDown][hRight]=mixes.N[t][iDown]*Matrix(I*g/MW/ex(2));
220  boson.C[t][iUp][iUp][hLeft]=mixes.N[t][iUp].conjugate()*Matrix(I*g/MW/ex(2));
221  boson.C[t][iDown][iDown][hLeft]=mixes.N[t][iDown].conjugate()*Matrix(-I*g/MW/ex(2));
222  boson.C[t][iUp][iUp][hRight]=mixes.N[t][iUp]*Matrix(-I*g/MW/ex(2));
223  }
224  bosons.push_back(boson);
225  boson.reset();
226
227  Fermion electron(tLepton,iDown,fElectron);
228  Fermion electronR(tLepton,iDown,fElectron,cParticle,hRight);
229
230  Fermion muon(tLepton,iDown,fMuon);
231  Fermion muonR(tLepton,iDown,fMuon,cParticle,hRight);
232
233  Fermion tau(tLepton,iDown,fTau);
234  Fermion tauR(tLepton,iDown,fTau,cParticle,hRight);
235  Fermion neutrino(tLepton,iUp);
236  Fermion neutrinotau(tLepton,iUp,fTau);
237  Fermion neutrinomuon(tLepton,iUp,fMuon);
238  Fermion neutrinoe(tLepton,iUp,fElectron);
239
240  Fermion up(tQuark,iUp,fElectron);
241  Fermion down(tQuark,iDown,fElectron);
242  Fermion bottom(tQuark,iDown,fTau);
243  Fermion strange(tQuark,iDown,fMuon);
244  Fermion charm(tQuark,iUp,fMuon);
245  Fermion top(tQuark,iUp,fTau);
246
247  Meson Pi0d(down,down,Mpi0,Fpi);
248  Meson Pi0u(down,down,Mpi0,Fpi);
249  Meson Pip(up,down,Mpip,Fpi);
250  Meson Pim(down,up,Mpip,Fpi);
251
252  Meson K0(down,strange,MK0,FK);
253  Meson Kp(up,strange,MKp,FK);
254
255  Meson D0(charm,up,MD0,FD);
256  Meson Dp(charm,down,MDp,FD);
257  Meson Dsp(charm,strange,MDsp,FDs);
258
259  Meson B0(down,bottom,MB0,FB);
260  Meson Bp(up,bottom,MBp,FB);
261  Meson Bs0(strange,bottom,MBs0,FBs);
262
263  lst sb;
264  //sb.append(mixes.M[tQuark][iUp][0][0]==0);
265  sb.append(pow(abs(mixes.V[0][2][2]),2)==1-pow(abs(mixes.V[0][1][2]),2)-pow(abs(mixes.V[0][0][2]),2));
266  sb.append(pow(abs(mixes.V[0][2][1]),2)==1-pow(abs(mixes.V[0][1][1]),2)-pow(abs(mixes.V[0][0][1]),2));
267
268  //cout<<"Btaunu "<<collect_common_factors(expand(Btaunu.subs(sb).subs(conjtoabs)))<<endl;
269
270  cout<<latex;
271
272  ex mutoenunu=decaywidth(muon,neutrino,electron,neutrino);
273
274  //cout<<"mutoenunu "<<mutoenunu<<endl;
275  //add("mutoenunu",decaywidth(muon,neutrino,electron,neutrino),new gaussobs(planck/2.197034e-6,0.03));
276
277  add("muRtoeRnunu",gRR2(muon,electron),new limitedobs(std::pow(0.035,2),0.95));
278
279  //add("tautoenunu",decaywidth(tau,neutrino,electron,neutrino),new gaussobs(planck/290.6e-15*0.1782,0.03));
280  add("tauRtoeRnunu",gRR2(tau,electron),new limitedobs(std::pow(0.7,2),0.95));
281
282  //add("tautomununu",decaywidth(tau,neutrino,muon,neutrino),new gaussobs(planck/290.6e-15*0.1739,0.03));
283  add("tauRtomuRnunu",gRR2(tau,muon),new limitedobs(std::pow(0.72,2),0.95));
284
285  add("tautomu_tautoe",tautomu_tautoe(),new gaussobs(1.0018,0.0014/1.0018)); //PROBLEM!!!
286  cout<<"tautomu_tautoe: "<<1/1.0018<< "ERROR: "<<0.0014/1.0018<<endl;
287  cout<<"ratio1 "<<tautomu_tautoe().subs(replacements)<<endl;
288  cout<<"ratio2 "<<(decaywidth(tau,neutrino,muon,neutrino,sVector)/decaywidth(tau,neutrino,electron,neutrino,sVector)).subs(replacements)<<endl;
289  //muto3e
290  ex mu3e=decaywidth(muon,electron,electron,electron);
291  add("muto3e", mu3e,new limitedobs(planck/2.197034e-6*1e-12));
292  cout<<"mu3e "<<decaywidthtest2(muon)<<endl;
293
294  //tauto3e
295  add("tauto3e", decaywidth(tau,electron,electron,electron),new limitedobs(planck/290.6e-15*2.7e-8));
296  //tauto2e1mu+
297  add("tauto2e1mup", decaywidth(tau,electron,electron,muon), new limitedobs(planck/290.6e-15*1.5e-8));
298  //tauto2e1mu-
299  add("tauto2e1mu", decaywidth(tau,electron,muon,electron), new limitedobs(planck/290.6e-15*1.8e-8));
300  //tauto2mu1e+
301
302  add("tauto2mu1ep", decaywidth(tau,muon,muon,electron), new limitedobs(planck/290.6e-15*1.7e-8));
303  cout<<"tauto2mu1ep "<<decaywidthtest2(tau)<<endl;
304  //tauto2mu1e-
305  add("tauto2mu1ep", decaywidth(tau,muon,electron,muon), new limitedobs(planck/290.6e-15*2.7e-8));
306  cout<<"tauto2mu1e "<<decaywidthtest2(tau)<<endl;
307
308  //tauto3mu
309  add("tauto3mu", decaywidth(tau,muon,muon,muon),new limitedobs(planck/290.6e-15*2.1e-8));
310  //cout<<"tauto3mu "<<collect_common_factors(expand(decaywidth(tau,muon,muon,muon)))<<endl;
311
312
313  ex piratio=1.2352e-4/(mesondw(Pip,neutrino,electron,sVector)/mesondw(Pip,neutrino,muon,sVector));
314  ex picorrection=piratio.subs(replacements);
315  ex pierror=picorrection*0.0001/1.2352;
316  cout<<"PiRatio "<<picorrection-1<<" +/- "<<pierror<<endl;
317  piratio*=mesondw(Pip,neutrino,electron)/mesondw(Pip,neutrino,muon);
318  add("piontoenu_munu",piratio,new gaussobs(1.230e-4,0.003)); //PROBLEM!!!
319  cout<<"piontoenu_munu: "<<1.2352e-4/1.230e-4<<" ERROR: "<<0.003<<endl;
320
321
322  add("tautopinu_pitomunu",(1+0.16e-2)*fermiontomeson(tau,neutrino,Pip)/mesondw(Pip,neutrino,muon),new gaussobs((10.83e-2/290.6e-15/(0.9998770/2.6033e-8)),0.06/10.83));
323  cout<<"tautopinu/pitomunu: "<<(1+0.16e-2)*(fermiontomeson(tau,neutrino,Pip,sVector)/mesondw(Pip,neutrino,muon,sVector)).subs(replacements)/((10.83e-2/290.6e-15/(0.9998770/2.6033e-8)))<<" ERROR: "<<0.06/10.83<<endl;
324  cout<<"tautopinu: "<<fermiontomesontest(tau,neutrino,Pip)<<endl;
325  cout<<"tautopinu_pitomunu: "<<10.83e-2/290.6e-15/(0.9998770/2.6033e-8)<<" +/- "<<0.06e-2/290.6e-15/(0.9998770/2.6033e-8)<<endl;
326
327  add("tautoKnu_Ktomunu",(1+0.9e-2)*fermiontomeson(tau,neutrino,Kp)/mesondw(Kp,neutrino,muon),new gaussobs((7e-3/290.6e-15)/(0.6355/1.238e-8),0.1/7));
328  cout<<"tautoKnu/Ktomunu: "<<(1+0.9e-2)*(fermiontomeson(tau,neutrino,Kp,sVector)/mesondw(Kp,neutrino,muon,sVector)).subs(replacements)/((7e-3/290.6e-15)/(0.6355/1.238e-8))<<" ERROR: "<<0.1/7<<endl;
329  cout<<"tautoKnu/Ktomunu: "<<(7e-3/290.6e-15)/(0.6355/1.238e-8)<<" +/- "<<(0.1e-3/290.6e-15)/(0.6355/1.238e-8)<<endl;
330
331  //ex pi0toemu=(mesondecaywidth(Mpi0,down,down,electron,muon)+mesondecaywidth(Mpi0,up,up,electron,muon)+mesondecaywidth(Mpi0,down,down,muon,electron)+mesondecaywidth(Mpi0,up,up,muon,electron))/2;
332  ex pi0toemu=(mesondw(Pi0d,electron,muon)+mesondw(Pi0d,muon,electron)+mesondw(Pi0u,electron,muon)+mesondw(Pi0u,muon,electron))/2;
333  add("pi0toemu",pi0toemu,new limitedobs(3.6e-10*planck/8.52e-17));
334
335  ex Kratio=2.477e-5/(mesondw(Kp,neutrino,electron,sVector)/mesondw(Kp,neutrino,muon,sVector));
336  ex Kcorrection=Kratio.subs(replacements);
337  ex Kerror=Kcorrection*0.001/2.477;
338  cout<<"KRatio "<<Kcorrection-1<<" +/- "<<Kerror<<endl;
339  Kratio*=mesondw(Kp,neutrino,electron)/mesondw(Kp,neutrino,muon);
340  add("Ktoenu_munu",Kratio,new gaussobs(2.488e-5,0.005));
341  cout<<"Ktoenu_munu: "<<2.477e-5/2.488e-5<<" ERROR: "<<0.005<<endl;
342
343  ex k0Ltoemu=mesondw(K0,electron,muon)+mesondw(K0,muon,electron);
344  add("K0Ltoemu",k0Ltoemu,new limitedobs((4.7e-12*planck/5.116e-8)));
345  add("K0Ltoee",mesondw(K0,electron,electron),new limitedobs((9e-12*planck/5.116e-8)));
346
347  //add("K0Ltomumu",mesondw(K0,muon,muon),new limitedobs((6.84e-9*planck/5.116e-8)));
348
349  add("Dtoenu",mesondw(Dp,neutrino,electron),new limitedobs(8.8e-6*planck/1040e-15));
350  add("Dtomunu",mesondw(Dp,neutrino,muon),new gaussobs(3.82e-4*planck/1040e-15,0.1)); //PROBLEM!!!
351  cout<<"Dtomunu: "<<mesondw(Dp,neutrino,muon,sVector).subs(replacements)/(3.82e-4*planck/1040e-15)<<" ERROR: "<<0.1<<endl;
352
353  add("Dtotaunu",mesondw(Dp,neutrino,tau),new limitedobs(1.2e-3*planck/1040e-15)); //PROBLEM!!!
354  cout<<"Dtotaunu: "<<mesondw(Dp,neutrino,tau,sVector).subs(replacements)/(1.2e-3*planck/1040e-15)<<" LIMIT"<<endl;
355
356  //D0 2.6e-7/410.1e-15
357
358  ex D0toemu=mesondw(D0,electron,muon)+mesondw(D0,muon,electron);
359  add("D0toemu",D0toemu,new limitedobs((2.6e-7*planck/410.1e-15)));
360  ex D0toee=mesondw(D0,electron,electron);
361  add("D0toee",D0toee,new limitedobs((7.9e-8*planck/410.1e-15)));
362  ex D0tomumu=mesondw(D0,muon,muon);
363  add("D0tomumu",D0tomumu,new limitedobs((1.4e-7*planck/410.1e-15)));
364
365  //ex Dstomunu=mesondecaywidth(MDsp,strange,charm,muon,neutrino); //500e-15
366  add("Dstomunu",mesondw(Dsp,neutrino,muon),new gaussobs(5.9e-3*planck/500e-15,0.33/5.9)); //PROBLEM!!!
367  cout<<"Dstomunu: "<<mesondw(Dsp,neutrino,muon,sVector).subs(replacements)/(5.9e-3*planck/500e-15)<<" ERROR: "<<0.33/5.9<<endl;
368
369  add("Dstoenu",mesondw(Dsp,neutrino,electron),new limitedobs(1.2e-4*planck/500e-15));
370  add("Dstotaunu",mesondw(Dsp,neutrino,tau),new gaussobs(5.43e-2*planck/500e-15,0.31/5.43)); //PROBLEM!!!
371  cout<<"Dstotaunu: "<<mesondw(Dsp,neutrino,tau,sVector).subs(replacements)/(5.43e-2*planck/500e-15)<<" ERROR: "<<0.31/5.43<<endl;
372
373  add("Btomunu",mesondw(Bp,neutrino,muon),new limitedobs(9.8e-7*planck/1.641e-12));
374  add("Btoenu",mesondw(Bp,neutrino,electron),new limitedobs(1e-6*planck/1.641e-12));
375
376  add("Btotaunu",mesondw(Bp,neutrino,tau),new gaussobs(1.15e-4*planck/1.641e-12,0.23/1.15));
377  //add("Btotaunu",mesondw(Bp,neutrino,tau),new gaussobs(0.79e-4*planck/1.641e-12,0.23/1.15));
378
379  //calcuBmumu calcutest(mixes,Bs0,muon,muon,2.9e-9*planck/1.516e-12,0.7e-9*planck/1.516e-12,"Bs_to_mumu");
380  //calcuBmumu calcutest2(mixes,B0,muon,muon,3.6e-10*planck/1.519e-12,1.6e-10*planck/1.516e-19,"B_to_mumu");
381  //cout<<"TESTE "<<endl;
382  //double ps[4]={1,1e16,1e16,1e16};
383  //double resteste=0,resteste2=0;
384  //int nt=4,mt=1;
385  //calcutest.fp(&nt,ps,&mt,&resteste);
386  //calcutest2.fp(&nt,ps,&mt,&resteste2);
387  //cout<<"TESTE "<<resteste/(2.9e-9*planck/1.516e-12)<<" "<<resteste2/(3.6e-10*planck/1.519e-12)<<endl;
388  //ex B0tomumu=mesondw(B0,muon,muon);
389  //cout<<"B0tomumu "<<collect_common_factors(B0tomumu)<<endl;
390  //1.65e-4
391  //add("B0tomumu",B0tomumu,new limitedobs((8e-10*planck/1.519e-12)));
392
393  push_back(prediction(new calcuBmumu(mixes,B0,muon,muon,new limitedobs(6.3e-10*planck/1.519e-12),"B_to_mumu")));
394  //push_back(prediction(new calcuBmumu(mixes,B0,muon,muon,new gauss2obs(3.6e-10*planck/1.519e-12,1.6e-10*planck/1.519e-12),"B_to_mumu")));
395  push_back(prediction(new calcuBmumu(mixes,Bs0,muon,muon,new gauss2obs(2.9e-9*planck/1.516e-12,0.7e-9*planck/1.516e-12),"Bs_to_mumu")));
396  push_back(prediction(new calcuBmumu(mixes,K0,muon,muon,new limitedobs(2.3e-9*planck/5.116e-8),"K0L_to_mumu")));
397
398  cBmumu=new calcuBmumu(mixes,B0,muon,muon,new limitedobs(6.3e-10*planck/1.519e-12),"B_to_mumu");
399  cBsmumu=new calcuBmumu(mixes,Bs0,muon,muon,new gauss2obs(2.9e-9*planck/1.516e-12,0.7e-9*planck/1.516e-12),"Bs_to_mumu");
400
401  ex B0toetau=mesondw(B0,electron,tau)+mesondw(B0,tau,electron);
402  add("B0toetau",B0toetau,new limitedobs((2.8e-5*planck/1.519e-12)));
403  ex B0tomutau=mesondw(B0,muon,tau)+mesondw(B0,tau,muon);
404  add("B0tomutau",B0tomutau,new limitedobs((2.2e-5*planck/1.519e-12)));
405  ex B0toee=mesondw(B0,electron,electron);
406  add("B0toee",B0toee,new limitedobs((8.3e-8*planck/1.519e-12)));
407  ex B0totautau=mesondw(B0,tau,tau);
408  add("B0totautau",B0totautau,new limitedobs((4.1e-3*planck/1.519e-12)));
409
410  //B0s m=5.3663, life=1.472e-12 emu=2e-7, ee=2.8e-7 mumu=4.2e-8
411  ex Bs0toemu=mesondw(Bs0,electron,muon)+mesondw(Bs0,muon,electron);
412  add("Bs0toemu",Bs0toemu,new limitedobs((2e-7*planck/1.516e-12)));
413  ex Bs0toee=mesondw(Bs0,electron,electron);
414  add("Bs0toee",Bs0toee,new limitedobs((2.8e-7*planck/1.516e-12)));
415 // ex Bs0tomumu=mesondw(Bs0,muon,muon);
416 // add("Bs0tomumu",Bs0tomumu,new limitedobs((3.2e-9*planck/1.516e-12)));
417
418  // add("chargedHiggs",pow(McH,-2),new limitedobs(std::pow(80.0,-2),0.9));
419
420  cout<<"Bs0tomumu: "<<mesondwtest(Bs0,muon,muon)<<endl;
421  //add("chargedHiggs",1/McH,new limitedobs(1/80.0,0));
422
423  /*
424  Matrix llgamma2loop=Matrix(sqrt(ex(2))*mixes.N[tQuark][iUp][2][2]*mixes.M[tQuark][iUp][fTau][fTau]*pow(1/McH*log(mixes.M[tQuark][iUp][fTau][fTau]/McH),2))*mixes.N[tLepton][iDown];
425  for(uint i=0;i<3;i++)
426  for(uint j=0;j<3;j++)
427  if(j<i) llgamma2loop[i][j]=ex(3)*pow(g*g*(1-cos2)/4/Pi/Pi,3)*llgamma2loop[j][i]*llgamma2loop[j][i].conjugate()/pow(mixes.M[tLepton][iDown][i][i],2);
428  else llgamma2loop[i][j]=0;
429  add("mutoegamma",llgamma2loop[1][0],new limitedobs(1.2e-11));
430  add("tautoegamma",llgamma2loop[2][0],new limitedobs(3.3e-8));
431  add("tautomugamma",llgamma2loop[2][1],new limitedobs(4.4e-8));
432  //add("mutoegamma",llgamma2loop[1][0],new limitedobs(planck/2.197034e-6*1.2e-11));
433  //add("tautoegamma",llgamma2loop[2][0],new limitedobs(planck/290.6e-15*3.3e-8));
434  //add("tautomugamma",llgamma2loop[2][1],new limitedobs(planck/290.6e-15*4.4e-8));
435  */
436
437  Matrix llgammaCH;
438  //Matrix llgammaCH=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH*12))*mixes.M[tLepton][iDown]*mixes.VN[tLepton][1].conjugate()*mixes.VN[tLepton][1];
439  Matrix llgammaH0M,llgammaH0E;
440  /*for(uint i=0;i<3;i++)
441  for(uint j=0;j<3;j++)
442  for(uint k=0;k<3;k++){
443  ex z=pow(fmasses[1][i][i]/McH,2); mixes.M[tQuark][iUp][i][i]/MR,2);
444  llgammaH0M[j][k]=llgammaH0M[j][k]+(mixes.VN[0][1][j][i].conjugate()*mixes.VN[0][1][k][i]+mixes.VN[0][1][i][j]*mixes.VN[0][1][i][k].conjugate())/pow(mixes.M[tLepton][iDown][i][i],2)*(2*z+6*z*z*log(z))/6;
445  llgammaH0M[j][k]=llgammaH0M[j][k]+(mixes.VN[0][1][i][j]*mixes.VN[0][1][k][i])/mixes.M[tLepton][iDown][i][i]/mixes.M[tLepton][iDown][j][j]*(3*z+2*z*log(z));
446
447  llgammaH0E[j][k]=llgammaH0E[j][k]+(mixes.VN[0][1][j][i].conjugate()*mixes.VN[0][1][k][i]-mixes.VN[0][1][i][j]*mixes.VN[0][1][i][k].conjugate())/pow(mixes.M[tLepton][iDown][i][i],2)*(2*z+6*z*z*log(z))/6;
448  llgammaH0E[j][k]=llgammaH0E[j][k]+(mixes.VN[0][1][i][j]*mixes.VN[0][1][k][i])/mixes.M[tLepton][iDown][i][i]/mixes.M[tLepton][iDown][j][j]*(3*z+2*z*log(z));
449  }
450  */
451  llgammaH0M=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH))*mixes.M[tLepton][iDown]*llgammaH0M;
452  llgammaH0E=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH))*mixes.M[tLepton][iDown]*llgammaH0E;
453
454  Matrix llgamma, llgamma2;
455
456  for(uint i=0;i<3;i++)
457  for(uint j=0;j<3;j++){
458  //if(j<i) llgamma[i][j]=(llgammaCH[i][j]*llgammaCH[i][j].conjugate()+llgammaH0E[i][j]*llgammaH0E[i][j].conjugate()+llgammaH0M[i][j]*llgammaH0M[i][j].conjugate())*g*g*(1-cos2)*pow((pow(mixes.M[tLepton][iDown][i][i],2)-pow(mixes.M[tLepton][iDown][j][j],2))/mixes.M[tLepton][iDown][i][i],3)/(4*Pi);
459  ex mmuon=mixes.M[tLepton][iDown][i][i];
460  ex A,B;
461
462  if(j<i){ for(uint k=0;k<3;k++){
463  ex mtau=mixes.M[tLepton][iDown][k][k];
464  B+=-mixes.VN[tLepton][1][k][j].conjugate()*mixes.VN[tLepton][1][k][i]/(12*pow(McH,2));
465  B+=mixes.N[tLepton][1][k][j].conjugate()*mixes.N[tLepton][1][k][i]/12*(pow(MR,-2)+pow(MI,-2));
466
467  A+=mixes.N[tLepton][1][j][k]*mixes.N[tLepton][1][i][k].conjugate()*(pow(MR,-2)+pow(MI,-2))/12;
468  A+=mixes.N[tLepton][1][j][k]*mixes.N[tLepton][1][k][i]/mtau/mmuon*(Fh2(pow(mtau/MR,2))-Fh2(pow(mtau/MI,2)))/4;
469  }
470  llgamma[i][j]=(A*A.conjugate()+B*B.conjugate())*alpha*pow(mmuon,5)*GF*GF/(128*pow(Pi,4));
471  }
472  else if(j==i){
473  for(uint k=0;k<3;k++){
474  ex mtau=mixes.M[tLepton][iDown][k][k];
475  B+=-mixes.VN[tLepton][1][k][j].conjugate()*mixes.VN[tLepton][1][k][i]/(12*pow(McH,2));
476  B+=mixes.N[tLepton][1][k][j].conjugate()*mixes.N[tLepton][1][k][i]/12*(pow(MR,-2)+pow(MI,-2));
477  B+=mixes.N[tLepton][1][j][k].conjugate()*mixes.N[tLepton][1][i][k]/12*(pow(MR,-2)+pow(MI,-2));
478  }
479  llgamma[i][j]=-B*GF*sqrt(1/2)/(8*pow(Pi,2))*2*mmuon; //e (GeV)^-1=1/(51e6)(e cm) where e=sqrt(alpha*4*Pi)
480  }
481  }
482  add("mutoegamma",llgamma[1][0],new limitedobs(planck/2.197034e-6*2.4e-12));
483  add("tautoegamma",llgamma[2][0],new limitedobs(planck/290.6e-15*3.3e-8));
484  add("tautomugamma",llgamma[2][1],new limitedobs(planck/290.6e-15*4.4e-8));
485
486  /*add("d_e",abs(llgamma[0][0].imag_part()),new limitedobs(10.5e-28*51e6));
487  add("d_mu",abs(llgamma[1][1].imag_part()),new limitedobs(1.9e-19*51e6));
488  add("d_tau",llgamma[2][2].imag_part(),new gaussobs(-0.85e-17*51e6,0.825/0.85));
489  cout<<"EDM: "<<llgamma[0][0].subs(conjtoabs).subs(replacements).imag_part()<<endl;
490  add("a_mu",-llgamma[1][1].real_part()*2*mixes.M[tLepton][iDown][1][1],new gaussobs(3e-9,1.0/3.0));
491  */
492  /*llgammaCH=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH*12))*mixes.M[tQuark][iDown]*mixes.VN[1][1].conjugate()*mixes.VN[1][1]; //4+1
493  //Matrix llgammaH0M,llgammaH0E;
494  for(uint i=0;i<3;i++)
495  for(uint j=0;j<3;j++)
496  for(uint k=0;k<3;k++){
497  ex z=pow(mixes.M[tQuark][iUp][i][i]/MR,2);
498  llgammaH0M[j][k]=llgammaH0M[j][k]+(mixes.VN[1][1][j][i].conjugate()*mixes.VN[1][1][k][i]+mixes.VN[1][1][i][j]*mixes.VN[1][1][i][k].conjugate())/pow(mixes.M[tQuark][iDown][i][i],2)*(2*z+6*z*z*log(z))/6;
499  llgammaH0M[j][k]=llgammaH0M[j][k]+(mixes.VN[1][1][i][j]*mixes.VN[1][1][k][i])/mixes.M[tQuark][iDown][i][i]/mixes.M[tQuark][iDown][j][j]*(3*z+2*z*log(z));
500
501  llgammaH0E[j][k]=llgammaH0E[j][k]+(mixes.VN[1][1][j][i].conjugate()*mixes.VN[1][1][k][i]-mixes.VN[1][1][i][j]*mixes.VN[1][1][i][k].conjugate())/pow(mixes.M[tQuark][iDown][i][i],2)*(2*z+6*z*z*log(z))/6;
502  llgammaH0E[j][k]=llgammaH0E[j][k]+(mixes.VN[1][1][i][j]*mixes.VN[1][1][k][i])/mixes.M[tQuark][iDown][i][i]/mixes.M[tQuark][iDown][j][j]*(3*z+2*z*log(z));
503  }
504  llgammaH0M=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH))*mixes.M[tQuark][iDown]*llgammaH0M;
505  llgammaH0E=Matrix(g*g/(16*Pi*4*Pi*MW*MW*McH*McH))*mixes.M[tQuark][iDown]*llgammaH0E;
506
507  //Matrix llgamma;
508  for(uint i=0;i<3;i++)
509  for(uint j=0;j<3;j++)
510  if(j<i) {llgamma[i][j]=(llgammaCH[i][j]*llgammaCH[i][j].conjugate()+llgammaH0E[i][j]*llgammaH0E[i][j].conjugate()+llgammaH0M[i][j]*llgammaH0M[i][j].conjugate())*g*g*(1-cos2)*pow((pow(mixes.M[tQuark][iDown][i][i],2)-pow(mixes.M[tQuark][iDown][j][j],2))/mixes.M[tQuark][iDown][i][i],3)/(4*Pi);
511  //llgamma[i][j]=llgamma[i][j].subs(lst(abs(wild()*pow(MH0,-2))==abs(wild())*pow(MH0,-2)));
512  }
513  else llgamma[i][j]=0;
514  */
515
516
517  push_back(prediction(new calcubtosgamma2(mixes)));
518
519  //add("btosgamma",llgamma[2][1],new gaussobs(3.55e-4,sqrt(2)*0.25/3.55),1);
520  //cout<<csrc<<llgamma[2][1]<<endl;
521  //cout<<latex;
522
523
524  BR_Htotaunu=(CHdecaycoupling(chiggs,tau,neutrino)+3*CHdecaycoupling(chiggs,strange,charm))/factor(CHdecaycoupling(chiggs,Fermion(tLepton,iDown),neutrino)+3*CHdecaycoupling(chiggs,Fermion(tQuark,iDown),charm)+3*CHdecaycoupling(chiggs,Fermion(tQuark,iDown),up));
525  BR_Htotaunu=BR_Htotaunu.subs(replacements);
526
527  //BR_toptoHq=decaywidth(top,bottom,chiggs);
528  //ex toptoWb=decaywidth(top,bottom,wboson);
529  //BR_toptoHq=BR_toptoHq/(BR_toptoHq+toptoWb);
530  //BR_toptoHq=BR_toptoHq.subs(replacements);
531
532  //cout<<"toptoWb "<<toptoWb.subs(replacements).evalf()<<endl;
533
534  //b to c tau- nu/b to c e- nu
535  //ex btocR=decaywidth(bottom,charm,tau,neutrino,sVector)/(decaywidth(bottom,charm,electron,neutrino,sVector)+decaywidth(bottom,charm,muon,neutrino,sVector));
536  //cout<<btocR.subs(replacements)<<endl;
537
538  ex BtoDtaunu,BtoD2taunu, BtoDtaunuSM, KtoPi;
539  for(uint i=0; i<3; i++){
540  ex Wcoup=wboson.couplingL(charm,bottom)*wboson.couplingdaggerL(tau,Fermion(tLepton,iUp,FFlavour(i)));
541  if(Wcoup.subs(replacements)==ex(0)) continue;
542  ex chcoup_Wcoup=-pow(MW/McH,2)*(chiggs.couplingR(charm,bottom)+chiggs.couplingL(charm,bottom))*chiggs.couplingdaggerL(tau,Fermion(tLepton,iUp,FFlavour(i)))/Wcoup;
543  ex chcoup2_Wcoup=-pow(MW/McH,2)*(chiggs.couplingR(charm,bottom)-chiggs.couplingL(charm,bottom))*chiggs.couplingdaggerL(tau,Fermion(tLepton,iUp,FFlavour(i)))/Wcoup;
544
545  BtoDtaunuSM+=Wcoup*Wcoup.conjugate();
546  BtoDtaunu+=Wcoup*Wcoup.conjugate()*(1+1.5*chcoup_Wcoup.real_part()+chcoup_Wcoup.conjugate()*chcoup_Wcoup);
547  BtoD2taunu+=Wcoup*Wcoup.conjugate()*(1+0.12*chcoup2_Wcoup.real_part()+0.05*chcoup2_Wcoup.conjugate()*chcoup2_Wcoup);
548  }
549  lst r2(pow(mixes.V[1][1][2].imag_part(),2)==pow(abs(mixes.V[1][1][2]),2)-pow(mixes.V[1][1][2].real_part(),2));
550  r2.append(pow(mixes.V[0][2][2].imag_part(),2)==pow(abs(mixes.V[0][2][2]),2)-pow(mixes.V[0][2][2].real_part(),2));
551
552  r2.append(mixes.M[1][0][1][1]==0);
553  r2.append(pow(abs(mixes.V[0][2][2]),2)==1-pow(abs(mixes.V[0][1][2]),2)-pow(abs(mixes.V[0][0][2]),2));
554  r2.append(pow(abs(mixes.V[0][2][1]),2)==1-pow(abs(mixes.V[0][1][1]),2)-pow(abs(mixes.V[0][0][1]),2));
555  r2.append(abs(sqrt(ex(2))* GF)==sqrt(ex(2))* GF);
556
557  BtoDtaunuSM=collect_common_factors(BtoDtaunuSM.subs(conjtoabs).subs(r2));
558  BtoDtaunu=collect_common_factors(BtoDtaunu.subs(conjtoabs).subs(r2));
559
560  BtoDtaunuR=(BtoDtaunu/BtoDtaunuSM).subs(replacements).real_part();
561
562  BtoD2taunu=BtoD2taunu.subs(conjtoabs).subs(r2);
563  BtoD2taunuR=(BtoD2taunu/BtoDtaunuSM).subs(replacements).real_part();
564
565
566  //cout<<"BtoDtaunu/BtoDtaunuSM "<<expand(BtoDtaunu/BtoDtaunuSM)<<endl;
567  iBDtaunu=size();
568  add("BtoDtaunu_BtoDtaunuSM",BtoDtaunu/BtoDtaunuSM,new gaussobs(440.0/296, 1.4*58.0/440));
569
570  iBD2taunu=size();
571  //cout<<"BtoD2taunu/BtoD2taunuSM "<<1+collect_common_factors(expand(BtoD2taunu/BtoDtaunuSM-1))<<endl;
572  add("BtoD2taunu_BtoD2taunuSM",BtoD2taunu/BtoDtaunuSM,new gaussobs(332.0/252, 1.4*24.0/332.0));
573
574
575
576  for(uint j=0; j<2; j++){
577  ex KtoPimunu, KtoPimunuSM;
578  for(uint i=0; i<3; i++){
579  ex Wcoup=wboson.couplingL(up,strange)*wboson.couplingdaggerL(Fermion(tLepton,iDown,FFlavour(j)),Fermion(tLepton,iUp,FFlavour(i)));
580  if(Wcoup.subs(replacements)==ex(0)) continue;
581  ex chcoup_Wcoup=-pow(MW/McH,2)*(chiggs.couplingR(up,strange)+chiggs.couplingL(up,strange))\
582  *chiggs.couplingdaggerL(muon,Fermion(tLepton,iUp,FFlavour(i)))/Wcoup*(pow(MKp,2)-pow(Mpip,2))\
583  /(mixes.mass(Fermion(tLepton,iDown,FFlavour(j)))*(mixes.mass(strange)-mixes.mass(up)));
584  chcoup_Wcoup=collect_common_factors(expand(chcoup_Wcoup));
585  KtoPimunuSM+=collect_common_factors(expand(Wcoup*Wcoup.conjugate()));
586  KtoPimunu+=collect_common_factors(expand(Wcoup*Wcoup.conjugate()*pow(1+chcoup_Wcoup,2)));
587  }
588  KtoPimunuSM=collect_common_factors(expand(KtoPimunuSM.subs(conjtoabs).subs(r2)));
589  KtoPimunu=collect_common_factors(expand(KtoPimunu.subs(conjtoabs).subs(r2)));
590  KtoPimunu=expand(KtoPimunu.subs(replacements).real_part().subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
591  KtoPimunu=expand(KtoPimunu.evalf());
592  KtoPimunuSM=expand(KtoPimunuSM.subs(replacements).real_part().subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
593  KtoPimunuSM=expand(KtoPimunuSM.evalf());
594  KtoPi+=0.5*log(KtoPimunu/KtoPimunuSM);
595  }
596
597  add("KtoPi",KtoPi/(pow(MKp,2)-pow(Mpip,2)),new gaussobs(0.08, 0.11/0.08));
598
599
600  //add("b to c tau- nu/b to c e- nu", decaywidth(bottom,charm,electron,neutrino), new limitedobs(planck/290.6e-15*2.7e-8));
601
602  double fD=0.207;
603  ex DDbar=ex(std::pow(fD,2))*mesonmixing(MD0,charm,up);
604  DDbar=expand(DDbar.subs(replacements).subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
605  DDbar=expand(DDbar.evalf());
606  ex aDDbar=sqrt(DDbar.real_part()*DDbar.real_part()+DDbar.imag_part()*DDbar.imag_part());
607  add("DDbar",aDDbar,new limitedobs(9.47e-15));
608  cout<<DDbar<<endl;
609 //2|M12|<6.6e-15GeV
610
611  double fK=0.156;
612  ex KKbar=ex(std::pow(fK,2))*mesonmixing(MK0,strange,down);
613  KKbar=expand(KKbar.subs(replacements).subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
614  KKbar=expand(KKbar.evalf());
615  ex aKKbar=sqrt(KKbar.real_part()*KKbar.real_part()+KKbar.imag_part()*KKbar.imag_part());
616  add("KKbar",aKKbar,new limitedobs(3.5e-15));
617  ex eK=0.94*imag_part(KKbar)/3.5e-15/sqrt(2);
618  //add("a_eK",abs(eK),new limitedobs(2.2e-3));
619  add("a_eK",abs(eK),new limitedobs(20*0.0114e-3));
620  cout<<abs(KKbar)<<endl;
621
622  double fB=0.189;
623  ex Vtb=mixes.V[tQuark][2][2]/mixes.V[tQuark][2][2].conjugate();
624  ex Vtd=mixes.V[tQuark][2][0]/mixes.V[tQuark][2][0].conjugate();
625  ex Vts=mixes.V[tQuark][2][1]/mixes.V[tQuark][2][1].conjugate();
626
627  ex BBbar=1+ex(std::pow(fB,2))*mesonmixing(MB0,bottom,down)/(3.337e-13*Vtb*Vtd.conjugate());
628  add("BBbarimag",imag_part(BBbar),new gauss2obs(-0.199,0.062));
629  add("BBbarreal",real_part(BBbar),new gauss2obs(0.823,0.143));
630  cout<<BBbar<<endl;
631  BBbar=3.337e-13*Vtb*Vtd.conjugate();
632  cout<<"Bbar "<<(abs(imag_part(BBbar))/abs(BBbar)).subs(replacements)<<endl;
633  double fBs=0.225;
634  ex BsBsbar=1+ex(std::pow(fBs,2))*mesonmixing(MBs0,bottom,strange)/(1.186e-11*Vtb*Vts.conjugate());
635  add("BsBsbarimag",imag_part(BsBsbar),new gauss2obs(0,0.1));
636  add("BsBsbarreal",real_part(BsBsbar),new gauss2obs(0.965,0.133));
637  cout<<BsBsbar<<endl;
638  BsBsbar=1.186e-11*Vtb*Vts.conjugate();
639  cout<<"Bbar "<<(abs(imag_part(BsBsbar))/abs(BsBsbar)).subs(replacements)<<endl;
640
641  ex McH2=McH*McH;
642  ex MR2=MR*MR;
643  ex MI2=MI*MI;
644
645  ex cu=collect_common_factors(expand(chiggs.couplingL(top,bottom)))/mixes.mass(top)/(g/MW/sqrt(ex(2)))/mixes.V[1][2][2];
646  cout<<"cu "<<cu<<endl;
647  ex Zbb=(cu-0.72)/McH;
648  add("Zbb",Zbb,new limitedobs(0.0024));
649  cout<<"Zbb "<<Zbb<<endl;
650  cout<<"SIZE "<<size()<<endl;
651
652  push_back(prediction(new calcuOblique()));
653 }
BGLmodels::Mixes::V
vector< Matrix > V
Definition: Formulas.h:204
BGLmodels::BGL::MK0
const constant MK0
Definition: BGL.h:1490
BGLmodels::BGL::GF
const possymbol GF
Definition: BGL.h:1489
BGLmodels::BGL::MBp
const constant MBp
Definition: BGL.h:1490
BGLmodels::BGL::BtoD2taunuR
ex BtoD2taunuR
Definition: BGL.h:1503
BGLmodels::BGL::decaywidthtest2
ex decaywidthtest2(const Fermion &ff1) const
Definition: BGL.h:989
BGLmodels::BGL::mu
realsymbol mu
Definition: BGL.h:1507
BGLmodels::BGL::Fpi
const constant Fpi
Definition: BGL.h:1491
BGLmodels::BGL::tautomu_tautoe
ex tautomu_tautoe() const
Definition: BGL.h:1117
BGLmodels::BGL::BGLtype
vector< int > BGLtype
Definition: BGL.h:1510
BGLmodels::BGL::cBmumu
calcuBmumu * cBmumu
Definition: BGL.h:1514
BGLmodels::BGL::Mpip
const constant Mpip
Definition: BGL.h:1490
BGLmodels::BGL::FBs
const constant FBs
Definition: BGL.h:1491
BGLmodels::BGL::Fh2
ex Fh2(ex x) const
Definition: BGL.h:695
BGLmodels::BGL::MB0
const constant MB0
Definition: BGL.h:1490
BGLmodels::BGL::mesondw
ex mesondw(const Meson &meson, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const
Definition: BGL.h:1170
BGLmodels::BGL::cp
const possymbol cp
Definition: BGL.h:1493
BGLmodels::BGL::mmmax
double mmmax
Definition: BGL.h:1512
BGLmodels::M_MZ
constexpr double M_MZ
Definition: Formulas.h:58
BGLmodels::BGL::replacements
lst replacements
Definition: BGL.h:1497
BGLmodels::BGL::MDp
const constant MDp
Definition: BGL.h:1490
BGLmodels::BGL::MR
const possymbol MR
Definition: BGL.h:1493
BGLmodels::BGL::MD0
const constant MD0
Definition: BGL.h:1490
BGLmodels::Mixes::N
multivector< Matrix, 2 > N
Definition: Formulas.h:206
BGLmodels::BGL::fermiontomesontest
ex fermiontomesontest(const Fermion &ff4, const Fermion &ff3, const Meson &meson, BSpin s=sAny) const
Definition: BGL.h:1376
BGLmodels::BGL::decaywidth
ex decaywidth(const Fermion &ff1, const Fermion &ff2, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const
Definition: BGL.h:879
BGLmodels::BGL::BtoDtaunuR
ex BtoDtaunuR
Definition: BGL.h:1502
BGLmodels::BGL::McH
const possymbol McH
Definition: BGL.h:1493
uint
unsigned int uint
Definition: script.cpp:4
limitedobs
An experimental measure which is an upper limit on a parameter with a given Confidence Level...
Definition: model.h:52
BGLmodels::BGL::cBsmumu
calcuBmumu * cBsmumu
Definition: BGL.h:1515
BGLmodels::Mixes::VN
multivector< Matrix, 2 > VN
Definition: Formulas.h:207
BGLmodels::BGL::fermiontomeson
ex fermiontomeson(const Fermion &ff4, const Fermion &ff3, const Meson &meson, BSpin s=sAny) const
Definition: BGL.h:1314
BGLmodels::BGL::CHdecaycoupling
ex CHdecaycoupling(Boson higgs, const Fermion &ff3, const Fermion &ff4) const
Definition: BGL.h:1461
gaussobs
An experimental measure of a parameter which is a mean value and a standard deviation.
Definition: model.h:78
BGLmodels::BGL::MDsp
const constant MDsp
Definition: BGL.h:1490
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
BGLmodels::BGL::mesondwtest
ex mesondwtest(const Meson &meson, const Fermion &ff3, const Fermion &ff4, BSpin s=sAny) const
Definition: BGL.h:1230
BGLmodels::BGL::MDs0
const constant MDs0
Definition: BGL.h:1490
BGLmodels::BGL::MZ
const possymbol MZ
Definition: BGL.h:1489
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::appendtolst
void appendtolst(lst &reps) const
Definition: Formulas.h:181
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::MKp
const constant MKp
Definition: BGL.h:1490
BGLmodels::BGL::FDs
const constant FDs
Definition: BGL.h:1491
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::FK
const constant FK
Definition: BGL.h:1491
BGLmodels::BGL::BR_Htotaunu
ex BR_Htotaunu
Definition: BGL.h:1499
BGLmodels::BGL::MBs0
const constant MBs0
Definition: BGL.h:1490
BGLmodels::BGL::iBDtaunu
int iBDtaunu
Definition: BGL.h:1509
BGLmodels::BGL::gRR2
ex gRR2(const Fermion &f1, const Fermion &f3) const
Definition: BGL.h:1085
gauss2obs
the same as gaussobs but with a different initializer, such that the uncertainty sigma is absolute ...
Definition: model.h:100
BGLmodels::Mixes::M
multivector< Matrix, 2 > M
Definition: Formulas.h:205
BGLmodels::BGL::mesonmixing
ex mesonmixing(ex mesonmass, const Fermion &f1, const Fermion &f2) const
Definition: BGL.h:1435
BGLmodels::BGL::FD
const constant FD
Definition: BGL.h:1491
BGLmodels::BGL::add
void add(const char *s, ex pred, observable *ob, bool sb=0)
Definition: BGL.h:716
BGLmodels::BGL::iBD2taunu
int iBD2taunu
Definition: BGL.h:1509
BGLmodels::M_MW
constexpr double M_MW
Definition: Formulas.h:59
BGLmodels::BGL::Mpi0
const constant Mpi0
Definition: BGL.h:1490
prediction
theoretical expression for an experimental measure
Definition: model.h:344
BGLmodels::BGL::stepsize
double stepsize
Definition: BGL.h:1512
BGLmodels::BGL::MW
const possymbol MW
Definition: BGL.h:1489
BGLmodels::BGL::FB
const constant FB
Definition: BGL.h:1491
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
BGLmodels::BGL::planck
const double planck
Definition: BGL.h:1488
BGLmodels::BGL::MI
const possymbol MI
Definition: BGL.h:1493

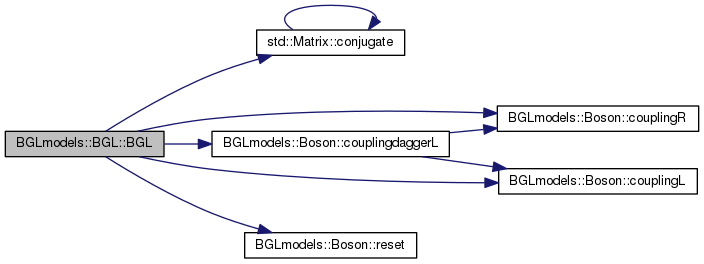

Here is the call graph for this function:

BGLmodels::BGL::~BGL ( )
inline

Definition at line 655 of file BGL.h.

655  {
656  delete cBmumu;
657  delete cBsmumu;
658  }
BGLmodels::BGL::cBmumu
calcuBmumu * cBmumu
Definition: BGL.h:1514
BGLmodels::BGL::cBsmumu
calcuBmumu * cBsmumu
Definition: BGL.h:1515

Member Function Documentation

ex BGLmodels::BGL::A0 ( ex  x) const
inline

Definition at line 700 of file BGL.h.

700  {
701  return x*(2+3*x-6*x*x+ x*x*x+6*x*log(x))/(24*pow(1-x,4));
702  }
ex BGLmodels::BGL::A1 ( ex  x) const
inline

Definition at line 704 of file BGL.h.

704  {
705  return x*(-3+4*x-x*x-2*log(x))/(4*pow(1-x,3));
706  }
ex BGLmodels::BGL::A2 ( ex  x) const
inline

Definition at line 708 of file BGL.h.

708  {
709  return x/(6*pow(1-x,3))*((-7+5*x-8*x*x)/6.0+x*log(x)/(1-x)*(-2+3*x));
710  }
ex BGLmodels::BGL::A3 ( ex  x) const
inline

Definition at line 712 of file BGL.h.

712  {
713  return (-3+8*x-5*x*x+(6*x-4)*log(x))*x/(6*pow(1-x,3));
714  }
void BGLmodels::BGL::add ( const char *  s,
ex  pred,
observable *  ob,
bool  sb = 0
)
inline

Definition at line 716 of file BGL.h.

716  {
717  //cout<<s<<endl;
718  //cout<<"prediction symb"<<pred<<endl;
719  //,pow(sin(wild()), 2) == 1-pow(cos(wild()), 2)
720  //ex p=expand(pred.subs(replacements).real_part().subs(lst(abs(wild()*pow(MR,-2))==abs(wild())*pow(MR,-2))).subs(lst(log(wild()*pow(MR,-2))==log(wild())-2*log(MR))));
721
722  ex p=pred.subs(replacements).real_part();
723  p=collect_common_factors(expand(p.evalf()));
724  FUNCP_CUBA fp;
725
726  lst l(tanb,McH,MR,MI);
727
728  for(uint i=0;i<3;i++){
729  l.append(Mu[i]);
730  l.append(Md[i]);
731  }
732  if(sb) push_back(prediction(ob,p));
733  else {
734  compile_ex(lst(p), l, fp);
735  //cout<<"prediction numeric"<<p<<endl;
736  //cout<<"exp "<<ob->expected()<<endl<<endl;
737  push_back(prediction(ob,fp));
738  }
739  }
BGLmodels::BGL::Mu
possymbol Mu[3]
Definition: BGL.h:1494
BGLmodels::BGL::Md
possymbol Md[3]
Definition: BGL.h:1494
BGLmodels::BGL::replacements
lst replacements
Definition: BGL.h:1497
BGLmodels::BGL::MR
const possymbol MR
Definition: BGL.h:1493
BGLmodels::BGL::McH
const possymbol McH
Definition: BGL.h:1493
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
prediction
theoretical expression for an experimental measure
Definition: model.h:344
BGLmodels::BGL::MI
const possymbol MI
Definition: BGL.h:1493
double BGLmodels::BGL::BranchingRatio ( double *  xx,
double *  p
)
inline

Definition at line 1477 of file BGL.h.

1477  {
1478  return ex_to<numeric>(BR_Htotaunu.subs(tanb==pow(10.0,xx[0])).evalf()).to_double();
1479 }
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
BGLmodels::BGL::BR_Htotaunu
ex BR_Htotaunu
Definition: BGL.h:1499
double BGLmodels::BGL::bsgammawidth ( double  tanb,
double  McH,
double  MR,
double  MI,
int  option = 0
)
inline

Definition at line 799 of file BGL.h.

References BGLmodels::calcubtosgamma2::width().

799  {
800  parameters p=generateparameters();
801  p[0].value=pow(10.0,tanb);
802  p[1].value=McH;
803  p[2].value=MR;
804  p[3].value=MI;
805
806  calcubtosgamma2 cal(mixes);
807
808  return cal.width(p,option);
809 }
BGLmodels::BGL::MR
const possymbol MR
Definition: BGL.h:1493
BGLmodels::BGL::McH
const possymbol McH
Definition: BGL.h:1493
parameters
vector of parameters
Definition: model.h:177
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::BGL::generateparameters
parameters generateparameters(int max=0) const
Definition: BGL.h:759
BGLmodels::BGL::MI
const possymbol MI
Definition: BGL.h:1493

Here is the call graph for this function:

ex BGLmodels::BGL::CHdecaycoupling ( Boson  higgs,
const Fermion &  ff3,
const Fermion &  ff4
) const
inline

Definition at line 1461 of file BGL.h.

References BGLmodels::Boson::couplingdaggerL(), BGLmodels::Boson::couplingdaggerR(), BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, and BGLmodels::fTau.

1461  {
1462
1463  Fermion f3=ff3, f4=ff4;
1464  ex ret=0;
1465  for(uint k=fElectron;k<=fTau;k++)
1466  if(ff3.flavour==fAny || ff3.flavour==k){
1467  f3.flavour=(FFlavour)k;
1468  for(uint l=fElectron;l<=fTau;l++)
1469  if(ff4.flavour==fAny || ff4.flavour==l){
1470  f4.flavour=(FFlavour)l;
1471  ret+=higgs.couplingdaggerL(f3,f4)*higgs.couplingdaggerL(f3,f4).conjugate()+higgs.couplingdaggerR(f3,f4)*higgs.couplingdaggerR(f3,f4).conjugate();
1472  }}
1473  return collect_common_factors(ret.subs(conjtoabs));
1474 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506

Here is the call graph for this function:

ex BGLmodels::BGL::decaywidth ( const Fermion &  ff1,
const Fermion &  ff2,
const Fermion &  ff3,
const Fermion &  ff4,
BSpin  s = sAny
) const
inline

Definition at line 879 of file BGL.h.

References BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::Boson::mass, BGLmodels::Boson::s, and BGLmodels::sAny.

879  {
880  multivector<ex,4> a(0,bosons.size(),2,2,2);
881  vector<ex> mass(bosons.size(),0);
882  vector<int> op(bosons.size(),0);
883  ex ret=0;
884  Fermion f1=ff1, f2=ff2,f3=ff3, f4=ff4;
885
886
887  for(uint i=fElectron;i<=fTau;i=i+1)
888  if(ff1.flavour==fAny || ff1.flavour==i){
889  f1.flavour=(FFlavour)i;
890  for(uint j=fElectron;j<=fTau;j++)
891  if(ff2.flavour==fAny || ff2.flavour==j){
892  f2.flavour=(FFlavour)j;
893  for(uint k=fElectron;k<=fTau;k++)
894  if(ff3.flavour==fAny || ff3.flavour==k){
895  f3.flavour=(FFlavour)k;
896  for(uint l=fElectron;l<=fTau;l++)
897  if(ff4.flavour==fAny || ff4.flavour==l){
898  f4.flavour=(FFlavour)l;
899  for(uint i=0;i<bosons.size();i++) if(bosons[i].s==s || s==sAny){
900  op[i]=bosons[i].s;
901  mass[i]=bosons[i].mass;
902  a[i][0][0][0]=bosons[i].couplingdaggerL(f2,f1)*bosons[i].couplingL(f3,f4);
903  a[i][0][0][1]=bosons[i].couplingdaggerL(f2,f1)*bosons[i].couplingR(f3,f4);
904  a[i][0][1][0]=bosons[i].couplingdaggerR(f2,f1)*bosons[i].couplingL(f3,f4);
905  a[i][0][1][1]=bosons[i].couplingdaggerR(f2,f1)*bosons[i].couplingR(f3,f4);
906
907  a[i][1][0][0]=bosons[i].couplingdaggerL(f3,f1)*bosons[i].couplingL(f2,f4);
908  a[i][1][0][1]=bosons[i].couplingdaggerL(f3,f1)*bosons[i].couplingR(f2,f4);
909  a[i][1][1][0]=bosons[i].couplingdaggerR(f3,f1)*bosons[i].couplingL(f2,f4);
910  a[i][1][1][1]=bosons[i].couplingdaggerR(f3,f1)*bosons[i].couplingR(f2,f4);
911  }
912
913  ret+=wc.get_integral_symb(a,mass,op,mixes.mass(f1));
914  //ret+=wc.get_integral(a,mass,op,mixes.massnum(f1),mixes.massnum(f2),mixes.massnum(f3),mixes.massnum(f4))/pow(mixes.massnum(f1),5)*pow(mixes.mass(f1),5);
915  }}}}
916  if(ff2.flavour==ff4.flavour) ret=ret/2;
917  return collect_common_factors(ret.subs(conjtoabs));
918  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
919 }
std::multivector
A vector of vectors of vectors of... (N times) of class T objects.
Definition: multivector.h:8
widthcalc::get_integral_symb
ex get_integral_symb(const multivector< ex, 4 > &a, const vector< ex > &mass, const vector< int > &op, ex m1) const
Definition: widthcalc.h:237
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::BGL::wc
widthcalc wc
Definition: BGL.h:1486
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::decaywidthtest2 ( const Fermion &  ff1) const
inline

Definition at line 989 of file BGL.h.

989  {
990  multivector<ex,3> a(0,2,2,2);
991  symbol gLL("g_{LL}"),gLR("g_{LR}"),gRL("g_{RL}"),gRR("g_{RR}"),cLL("c_{LL}"),cLR("c_{LR}"),cRL("c_{RL}"),cRR("c_{RR}");
992
993  a[0][0][0]=gLL;
994  a[0][0][1]=gLR;
995  a[0][1][0]=gRL;
996  a[0][1][1]=gRR;
997
998  a[1][0][0]=cLL;
999  a[1][0][1]=cLR;
1000  a[1][1][0]=cRL;
1001  a[1][1][1]=cRR;
1002
1003  ex ret=get_integral_symb(a,mixes.mass(ff1));
1004  //ret+=wc.get_integral(a,mass,op,mixes.massnum(f1),mixes.massnum(f2),mixes.massnum(f3),mixes.massnum(f4))/pow(mixes.massnum(f1),5)*pow(mixes.mass(f1),5);
1005
1006  return collect_common_factors(ret.subs(conjtoabs));
1007  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1008 }
BGLmodels::BGL::get_integral_symb
ex get_integral_symb(const multivector< ex, 3 > &a, ex m1) const
Definition: BGL.h:921
std::multivector
A vector of vectors of vectors of... (N times) of class T objects.
Definition: multivector.h:8
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::fermiontomeson ( const Fermion &  ff4,
const Fermion &  ff3,
const Meson &  meson,
BSpin  s = sAny
) const
inline

Definition at line 1314 of file BGL.h.

References BGLmodels::Boson::couplingL(), BGLmodels::Boson::couplingR(), BGLmodels::Meson::decay_factor, BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::Meson::mass, BGLmodels::Boson::mass, BGLmodels::Meson::q1, BGLmodels::Meson::q2, BGLmodels::Boson::s, and BGLmodels::sAny.

1314  {
1315
1316  const Fermion& f1(meson.q1), f2(meson.q2);
1317  ex mesonmass=meson.mass;
1318
1319  Fermion f3=ff3, f4=ff4;
1320
1321  ex ret=0;
1322
1323  realsymbol q3("q3"), q4("q4");
1324  ex s2=pow(mesonmass,2);
1325
1326  for(uint k=fElectron;k<=fTau;k++)
1327  if(ff3.flavour==fAny || ff3.flavour==k){
1328  f3.flavour=(FFlavour)k;
1329  for(uint l=fElectron;l<=fTau;l++)
1330  if(ff4.flavour==fAny || ff4.flavour==l){
1331  f4.flavour=(FFlavour)l;
1332  ex v1=0, v2=0;
1333  ex mq1=mixes.mass(f1),mq2=mixes.mass(f2),mq3=mixes.mass(f3),mq4=mixes.mass(f4);
1334  ex m2q1=mq1*mq1, m2q2=mq2*mq2, m2q3=mq3*mq3, m2q4=mq4*mq4;
1335  scalar_products sp;
1336  sp.add(q4, q3, -(s2-m2q4-m2q3)/2);
1337  sp.add(q3, q3, m2q3);
1338  sp.add(q4, q4, m2q4);
1339  //ex qm0=(s2-mq3*mq3+mq4*mq4)/(2*mq4), lqml=sqrt(qm0*qm0-s2);
1340  ex q30=(-s2+mq3*mq3+mq4*mq4)/(2*mq4), lq3l=sqrt(q30*q30-mq3*mq3);
1341  //ex q30=-(s2+mq3*mq3-mq4*mq4)/(2*sqrt(s2)), lq3l=sqrt(q30*q30-mq3*mq3);
1342
1343  for(uint i=0;i<bosons.size();i++)if(bosons[i].s==s || s==sAny){
1344  if(bosons[i].s==0){
1345  ex a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingL(f3,f4)*s2/(mq1+mq2)/pow(bosons[i].mass,2);
1346  v1=v1+a*dirac_gammaL();
1347  v2=v2+a.conjugate()*dirac_gammaR();
1348  a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingR(f3,f4)*s2/(mq1+mq2)/pow(bosons[i].mass,2);
1349  v1=v1+a*dirac_gammaR();
1350  v2=v2+a.conjugate()*dirac_gammaL();
1351  }
1352  else{
1353  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1354  ex a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingL(f3,f4)/pow(bosons[i].mass,2);
1355  v1=v1+a*sl*dirac_gammaL();
1356  v2=v2+a.conjugate()*sl*dirac_gammaL();
1357  a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingR(f3,f4)/pow(bosons[i].mass,2);
1358  v1=v1+a*sl*dirac_gammaR();
1359  v2=v2+a.conjugate()*sl*dirac_gammaR();
1360  }
1361  }
1362  ex vq3=dirac_slash(q3,4)+mq3*dirac_ONE(), vq4=dirac_slash(q4,4)+mq4*dirac_ONE();
1363  ex dt=dirac_trace(vq3*v1*vq4*v2).simplify_indexed(sp);
1364  ex result=expand(dt*2*lq3l/mq4/mq4/Pi/128);
1365
1366  ret+=result;
1367  }
1368  }
1369
1370
1371
1372  return pow(meson.decay_factor,2)*collect_common_factors(ret.subs(conjtoabs));
1373  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1374 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506

Here is the call graph for this function:

ex BGLmodels::BGL::fermiontomesontest ( const Fermion &  ff4,
const Fermion &  ff3,
const Meson &  meson,
BSpin  s = sAny
) const
inline

Definition at line 1376 of file BGL.h.

References BGLmodels::Meson::decay_factor, BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::Meson::mass, BGLmodels::Meson::q1, and BGLmodels::Meson::q2.

1376  {
1377
1378  const Fermion& f1(meson.q1), f2(meson.q2);
1379  ex mesonmass=meson.mass;
1380
1381  Fermion f3=ff3, f4=ff4;
1382
1383  ex ret=0;
1384
1385  realsymbol q3("q3"), q4("q4");
1386
1387  symbol sL("sL"), sR("sR"), vL("vL"), vR("vR");
1388  ex s2=pow(mesonmass,2);
1389
1390  for(uint k=fElectron;k<=fTau;k++)
1391  if(ff3.flavour==fAny || ff3.flavour==k){
1392  f3.flavour=(FFlavour)k;
1393  for(uint l=fElectron;l<=fTau;l++)
1394  if(ff4.flavour==fAny || ff4.flavour==l){
1395  f4.flavour=(FFlavour)l;
1396  ex v1=0, v2=0;
1397  ex mq1=mixes.mass(f1),mq2=mixes.mass(f2),mq3=mixes.mass(f3),mq4=mixes.mass(f4);
1398  ex m2q1=mq1*mq1, m2q2=mq2*mq2, m2q3=mq3*mq3, m2q4=mq4*mq4;
1399  scalar_products sp;
1400  sp.add(q4, q3, -(s2-m2q4-m2q3)/2);
1401  sp.add(q3, q3, m2q3);
1402  sp.add(q4, q4, m2q4);
1403  //ex qm0=(s2-mq3*mq3+mq4*mq4)/(2*mq4), lqml=sqrt(qm0*qm0-s2);
1404  ex q30=(-s2+mq3*mq3+mq4*mq4)/(2*mq4), lq3l=sqrt(q30*q30-mq3*mq3);
1405  //ex q30=-(s2+mq3*mq3-mq4*mq4)/(2*sqrt(s2)), lq3l=sqrt(q30*q30-mq3*mq3);
1406
1407
1408  ex a=sL;
1409  v1=v1+a*dirac_gammaL();
1410  v2=v2+a.conjugate()*dirac_gammaR();
1411  a=sR;
1412  v1=v1+a*dirac_gammaR();
1413  v2=v2+a.conjugate()*dirac_gammaL();
1414
1415  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1416  a=vL;
1417  v1=v1+a*sl*dirac_gammaL();
1418  v2=v2+a.conjugate()*sl*dirac_gammaL();
1419  a=vR;
1420  v1=v1+a*sl*dirac_gammaR();
1421  v2=v2+a.conjugate()*sl*dirac_gammaR();
1422
1423  ex vq3=dirac_slash(q3,4)+mq3*dirac_ONE(), vq4=dirac_slash(q4,4)+mq4*dirac_ONE();
1424  ex dt=dirac_trace(vq3*v1*vq4*v2).simplify_indexed(sp);
1425  ex result=expand(dt*2*lq3l/mq4/mq4/Pi/128);
1426
1427  ret+=result;
1428  }
1429  }
1430
1431  return pow(meson.decay_factor,2)*collect_common_factors(ret.subs(conjtoabs));
1432  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1433 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::FH1 ( ex  x) const
inline

Definition at line 682 of file BGL.h.

682  {
683  return -x/12;
684  }
ex BGLmodels::BGL::Fh1 ( ex  x) const
inline

Definition at line 690 of file BGL.h.

690  {
691  //return (2*x+3*pow(x,2)-6*pow(x,3)+pow(x,4)+6*pow(x,2)*log(x))/(6*pow(1-x,4));
692  return x/3;
693  }
ex BGLmodels::BGL::FH2 ( ex  x) const
inline

Definition at line 686 of file BGL.h.

686  {
687  return x/2;
688  }
ex BGLmodels::BGL::Fh2 ( ex  x) const
inline

Definition at line 695 of file BGL.h.

695  {
696  //return (-3*x+4*pow(x,2)-pow(x,3)-2*x*log(x))/pow(1-x,3);
697  return -2*(3/2+log(x))*x;
698  }
ex BGLmodels::BGL::FW ( ex  x) const
inline

Definition at line 678 of file BGL.h.

678  {
679  return (94-x*(179+x*(-55+12*x)))/(36*pow(1-x,3))+x*(16+x*(-32+9*x))*log(x)/(6*pow(1-x,4));
680  }
parameters BGLmodels::BGL::generateparameters ( int  max = 0) const
inlinevirtual

Implements Model.

Definition at line 759 of file BGL.h.

Referenced by main().

759  {
760  parameters p;
761  //x=log_10(tanb)
762  p.push_back(freeparameter(-3,3,r,stepsize));
763  //y=log_10(McH)
764  if(max==1) p.push_back(freeparameter(10,10000,r,stepsize));
765  else p.push_back(freeparameter(10,mmmax,r,stepsize));
766  //log_10(massR)
767  p.push_back(freeparameter(-200,200,r,stepsize));
768  //log_10(massI)
769  p.push_back(freeparameter(-50,50,r,stepsize));
770
771  return p;
772 }
Model::r
TRandom3 * r
Definition: model.h:405
BGLmodels::BGL::mmmax
double mmmax
Definition: BGL.h:1512
parameters
vector of parameters
Definition: model.h:177
freeparameter
A parameter which will be fitted in the simulation.
Definition: model.h:124
BGLmodels::BGL::stepsize
double stepsize
Definition: BGL.h:1512

Here is the caller graph for this function:

ex BGLmodels::BGL::get_integral_symb ( const multivector< ex, 3 > &  a,
ex  m1
) const
inline

Definition at line 921 of file BGL.h.

References BGLmodels::Boson::s.

921  {
922  realsymbol s2("s2"), s3("s3");
923  realsymbol q1("q1"), q2("q2"), q3("q3"), q4("q4");
924
925  ex m2q1=m1*m1;
926
927  ex vq1=dirac_slash(q2,4)+dirac_slash(q3,4)+dirac_slash(q4,4)+m1*dirac_ONE(), vq2=dirac_slash(q2,4);
928  ex vq3=dirac_slash(q3,4), vq4=dirac_slash(q4,4);
929
930  ex s4=m2q1-s2-s3;
931  scalar_products sp;
932  sp.add(q2, q3, (s4)/2);
933  sp.add(q4, q3, (s2)/2);
934  sp.add(q2, q4, (s3)/2);
935
936  sp.add(q2, q2, 0);
937  sp.add(q3, q3, 0);
938  sp.add(q4, q4, 0);
939
940  multivector<ex,2> v(0,2,2);
941  v[0][0]=dirac_gammaL(); v[0][1]=dirac_gammaR();
942  v[1][0]=dirac_gammaR(); v[1][1]=dirac_gammaL();
943
944  multivector<ex,5> traces(0,2,2,2,2,2);
945  for(uint k=0;k<2;k++)
946  for(uint l=0;l<2;l++)
947  for(uint m=0;m<2;m++)
948  for(uint n=0;n<2;n++){
949  ex vk=v[k][0];
950  ex vm=v[m][0];
951  ex vl=v[l][1];
952  ex vn=v[n][1];
953
954  traces[k][l][m][n][0]=dirac_trace(vq2*vk*vq1*vl)*dirac_trace(vq3*vm*vq4*vn);
955  traces[k][l][m][n][1]=-dirac_trace(vq2*vk*vq1*vl*vq3*vm*vq4*vn);
956  }
957
958  for(uint k=0;k<2;k++)
959  for(uint l=0;l<2;l++)
960  for(uint m=0;m<2;m++)
961  for(uint n=0;n<2;n++)
962  for(uint o=0;o<2;o++)
963  {
964  traces[k][l][m][n][o]=(traces[k][l][m][n][o]).simplify_indexed(sp);
965  }
966
967  ex q10=(s2+m1*m1)/(2*sqrt(s2)), lq1l=(m1*m1-s2)/(2*sqrt(s2));
968  ex q30=sqrt(s2)/2, lq3l=q30;
969  ex q20=(m1*m1-s2)/(2*m1), lq2l=q20;
970
971  ex total=0;
972  for(uint k=0;k<2;k++)
973  for(uint l=0;l<2;l++)
974  for(uint m=0;m<2;m++)
975  for(uint n=0;n<2;n++)
976  for(uint r=0;r<2;r++)
977  for(uint s=0;s<2;s++){
978  ex coup=a[r][k][m]*a[s][l][n].conjugate();
979  ex integrand=traces[k][l][m][n][(r+s)%2];
980  integrand=expand(integral(s3, 0, m1*m1-s2, integrand).eval_integ()/lq1l/sqrt(s2)*lq2l/m1/m1);
981  //double mm2=0, mm3=0, m4=0;
982  ex result=integral(s2,0,m1*m1,integrand).eval_integ()/pow(Pi,3)/512;
983  ex partial=result*coup;
984  total=total+partial;
985  }
986  return total;
987 }
Model::r
TRandom3 * r
Definition: model.h:405
uint
unsigned int uint
Definition: script.cpp:4
parameters BGLmodels::BGL::getlist ( const parameters &  p) const
inlinevirtual

Implements Model.

Definition at line 774 of file BGL.h.

References parameters::p, and parameters::values.

Referenced by main().

774  {
775  //cout<<aux<<endl;
776  //double c2=(1+sqrt(1-4*sqrt(ex_to<numeric>(mudecay.subs(lst(tanb==exp(p[0].value),McH==p[1].value))).to_double())))/2;
777
778  double x=pow(10.0,p[0].value);
779  //double y=pow(10.0,p[1].value);
780  //double z=pow(10.0,p[2].value);
781  //double w=pow(10.0,p[3].value);
782
783  double y=p[1].value;
784  double z=y+p[2].value;
785  double w=z+p[3].value;
786
787  parameters pp(p);
788  pp[0].value=x;
789  pp[2].value+=pp[1].value;
790  pp[3].value+=pp[2].value;
791  pp.values=vector<double>();
792  for(uint i=0; i<4; i++) pp.values.push_back(pp[i].value);
793  lst &l=pp.p;
794  l=lst(tanb==x,McH==y,MR==z,MI==w);
795
796  return pp;
797 }
BGLmodels::BGL::MR
const possymbol MR
Definition: BGL.h:1493
BGLmodels::BGL::McH
const possymbol McH
Definition: BGL.h:1493
uint
unsigned int uint
Definition: script.cpp:4
parameters
vector of parameters
Definition: model.h:177
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
BGLmodels::BGL::MI
const possymbol MI
Definition: BGL.h:1493

Here is the caller graph for this function:

ex BGLmodels::BGL::GH1 ( ex  x) const
inline

Definition at line 668 of file BGL.h.

668  {
669  return x*(x*((39-14*x)*x-6)+6*x*(3*x-8)*log(x)-19)/(36*pow(x-1,4));
670  //return -x/12;
671  }
ex BGLmodels::BGL::GH2 ( ex  x) const
inline

Definition at line 673 of file BGL.h.

673  {
674  return x*((x-1)*(11*x-21)+(16-6*x)*log(x))/(6*pow(x-1,3));
675  //return x/2;
676  }
ex BGLmodels::BGL::gRR2 ( const Fermion &  f1,
const Fermion &  f3
) const
inline

Definition at line 1085 of file BGL.h.

References BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::iUp, BGLmodels::Boson::mass, BGLmodels::Boson::s, BGLmodels::sScalar, BGLmodels::sVector, and BGLmodels::tLepton.

1085  {
1086
1087  ex ret1=0,ret2=0;
1088  Fermion f2(tLepton,iUp);
1089  Fermion f4(tLepton,iUp);
1090
1091  for(uint k=fElectron;k<=fTau;k++){
1092  f2.flavour=(FFlavour)k;
1093  for(uint l=fElectron;l<=fTau;l++){
1094  f4.flavour=(FFlavour)l;
1095  for(uint i=0;i<bosons.size();i++)
1096  if(bosons[i].s==sScalar) {
1097  ex x=bosons[i].couplingdaggerR(f2,f1)*bosons[i].couplingL(f3,f4)/pow(bosons[i].mass,2);
1098  ret1+=x*x.conjugate();
1099  }
1100  else if(bosons[i].s==sVector) {
1101  ex x=bosons[i].couplingdaggerL(f2,f1)*bosons[i].couplingL(f3,f4)/pow(bosons[i].mass,2);
1102  ret2+=x*x.conjugate();
1103  }
1104  }}
1105  //r2.append();
1106  ret2=ret2.subs(conjtoabs);
1107  ret1=ret1.subs(conjtoabs);
1108  for(uint i=0;i<3;i++){
1109  ret1=collect_common_factors(expand(ret1.subs(pow(abs(mixes.V[0][2][i]),2)==1-pow(abs(mixes.V[0][1][i]),2)-pow(abs(mixes.V[0][0][i]),2))));
1110  ret2=collect_common_factors(expand(ret2.subs(pow(abs(mixes.V[0][2][i]),2)==1-pow(abs(mixes.V[0][1][i]),2)-pow(abs(mixes.V[0][0][i]),2))));
1111  }
1112
1113  cout<<ret2<<endl;
1114  return collect_common_factors(ret1/ret2);
1115 }
BGLmodels::Mixes::V
vector< Matrix > V
Definition: Formulas.h:204
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::GW ( ex  x) const
inline

Definition at line 664 of file BGL.h.

664  {
665  return (94-x*(179+x*(-55+12*x)))/(36*pow(1-x,3))+x*(16+x*(-32+9*x))*log(x)/(6*pow(1-x,4));
666  }
ex BGLmodels::BGL::mesondw ( const Meson &  meson,
const Fermion &  ff3,
const Fermion &  ff4,
BSpin  s = sAny
) const
inline

Definition at line 1170 of file BGL.h.

References BGLmodels::Boson::couplingL(), BGLmodels::Boson::couplingR(), BGLmodels::Meson::decay_factor, BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::Meson::mass, BGLmodels::Boson::mass, BGLmodels::Meson::q1, BGLmodels::Meson::q2, BGLmodels::Boson::s, and BGLmodels::sAny.

1170  {
1171
1172  const Fermion& f1(meson.q1), f2(meson.q2);
1173  ex mesonmass=meson.mass;
1174
1175  Fermion f3=ff3, f4=ff4;
1176
1177  ex ret=0;
1178
1179  realsymbol q3("q3"), q4("q4");
1180  ex s2=pow(mesonmass,2);
1181
1182  for(uint k=fElectron;k<=fTau;k++)
1183  if(ff3.flavour==fAny || ff3.flavour==k){
1184  f3.flavour=(FFlavour)k;
1185  for(uint l=fElectron;l<=fTau;l++)
1186  if(ff4.flavour==fAny || ff4.flavour==l){
1187  f4.flavour=(FFlavour)l;
1188  ex v1=0, v2=0;
1189  ex mq1=mixes.mass(f1),mq2=mixes.mass(f2),mq3=mixes.mass(f3),mq4=mixes.mass(f4);
1190  ex m2q1=mq1*mq1, m2q2=mq2*mq2, m2q3=mq3*mq3, m2q4=mq4*mq4;
1191  scalar_products sp;
1192  sp.add(q4, q3, (s2-m2q4-m2q3)/2);
1193  sp.add(q3, q3, m2q3);
1194  sp.add(q4, q4, m2q4);
1195  ex q10=(s2+mq1*mq1-mq2*mq2)/(2*sqrt(s2)), lq1l=sqrt(q10*q10-mq1*mq1);
1196  ex q30=(s2+mq3*mq3-mq4*mq4)/(2*sqrt(s2)), lq3l=sqrt(q30*q30-mq3*mq3);
1197
1198  for(uint i=0;i<bosons.size();i++) if(bosons[i].s==s || s==sAny){
1199  if(bosons[i].s==0){
1200  ex a=-(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingL(f3,f4)*s2/(mq1+mq2)/pow(bosons[i].mass,2);
1201  v1=v1+a*dirac_gammaL();
1202  v2=v2+a.conjugate()*dirac_gammaR();
1203  a=-(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingR(f3,f4)*s2/(mq1+mq2)/pow(bosons[i].mass,2);
1204  v1=v1+a*dirac_gammaR();
1205  v2=v2+a.conjugate()*dirac_gammaL();
1206  }
1207  else{
1208  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1209  ex a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingL(f3,f4)/pow(bosons[i].mass,2);
1210  v1=v1+a*sl*dirac_gammaL();
1211  v2=v2+a.conjugate()*sl*dirac_gammaL();
1212  a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingR(f3,f4)/pow(bosons[i].mass,2);
1213  v1=v1+a*sl*dirac_gammaR();
1214  v2=v2+a.conjugate()*sl*dirac_gammaR();
1215  }
1216  }
1217  ex vq3=dirac_slash(q3,4)+mq3*dirac_ONE(), vq4=dirac_slash(q4,4)-mq4*dirac_ONE();
1218  ex dt=dirac_trace(vq3*v1*vq4*v2).simplify_indexed(sp);
1219  ex result=expand(dt*4*lq3l/s2/Pi/128);
1220
1221  ret+=result;
1222  }
1223  }
1224
1225  return pow(meson.decay_factor,2)*collect_common_factors(ret.subs(conjtoabs));
1226  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1227 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506

Here is the call graph for this function:

ex BGLmodels::BGL::mesondwtest ( const Meson &  meson,
const Fermion &  ff3,
const Fermion &  ff4,
BSpin  s = sAny
) const
inline

Definition at line 1230 of file BGL.h.

References BGLmodels::Meson::decay_factor, BGLmodels::fAny, BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fTau, BGLmodels::Meson::mass, BGLmodels::Meson::q1, and BGLmodels::Meson::q2.

1230  {
1231
1232  const Fermion& f1(meson.q1), f2(meson.q2);
1233  ex mesonmass=meson.mass;
1234
1235  Fermion f3=ff3, f4=ff4;
1236
1237  ex ret=0;
1238
1239  realsymbol q3("q3"), q4("q4");
1240  symbol gL("gL"), gR("gR"),gVL("gVL"), gVR("gVR");
1241  symbol gS("gS"), gP("gP"), gA("gA");
1242
1243  ex s2=pow(mesonmass,2);
1244
1245  for(uint k=fElectron;k<=fTau;k++)
1246  if(ff3.flavour==fAny || ff3.flavour==k){
1247  f3.flavour=(FFlavour)k;
1248  for(uint l=fElectron;l<=fTau;l++)
1249  if(ff4.flavour==fAny || ff4.flavour==l){
1250  f4.flavour=(FFlavour)l;
1251  ex v1=0, v2=0;
1252  ex mq1=mixes.mass(f1),mq2=mixes.mass(f2),mq3=mixes.mass(f3),mq4=mixes.mass(f4);
1253  ex m2q1=mq1*mq1, m2q2=mq2*mq2, m2q3=mq3*mq3, m2q4=mq4*mq4;
1254  scalar_products sp;
1255  sp.add(q4, q3, (s2-m2q4-m2q3)/2);
1256  sp.add(q3, q3, m2q3);
1257  sp.add(q4, q4, m2q4);
1258  ex q10=(s2+mq1*mq1-mq2*mq2)/(2*sqrt(s2)), lq1l=sqrt(q10*q10-mq1*mq1);
1259  ex q30=(s2+mq3*mq3-mq4*mq4)/(2*sqrt(s2)), lq3l=sqrt(q30*q30-mq3*mq3);
1260
1261  ex a;
1262  /* a=-gL*s2/(mq1+mq2);
1263  v1=v1+a*dirac_gammaL();
1264  v2=v2+a.conjugate()*dirac_gammaR();
1265  a=-gR*s2/(mq1+mq2);
1266  v1=v1+a*dirac_gammaR();
1267  v2=v2+a.conjugate()*dirac_gammaL();
1268
1269  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1270  a=gA;
1271  v1=v1+a*sl*dirac_gamma5();
1272  v2=v2+a.conjugate()*sl*dirac_gamma5();
1273 */
1274  a=-gS*s2/(mq1+mq2);
1275  v1=v1+a*dirac_ONE();
1276  v2=v2+a.conjugate()*dirac_ONE();
1277  a=-gP*s2/(mq1+mq2);
1278  v1=v1+a*dirac_gamma5();
1279  v2=v2-a.conjugate()*dirac_gamma5();
1280  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1281  // a=gA;
1282  // v1=v1+a*sl*dirac_gamma5();
1283  // v2=v2+a.conjugate()*sl*dirac_gamma5();
1284
1285  /*}
1286  else{
1287  ex sl=(dirac_slash(q3,4)+dirac_slash(q4,4));
1288  ex a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingL(f3,f4)/pow(bosons[i].mass,2);
1289  v1=v1+a*sl*dirac_gammaL();
1290  v2=v2+a.conjugate()*sl*dirac_gammaL();
1291  a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1))*bosons[i].couplingR(f3,f4)/pow(bosons[i].mass,2);
1292  v1=v1+a*sl*dirac_gammaR();
1293  v2=v2+a.conjugate()*sl*dirac_gammaR();
1294  }*/
1295
1296  ex vq3=dirac_slash(q3,4)+mq3*dirac_ONE(), vq4=dirac_slash(q4,4)-mq4*dirac_ONE();
1297  ex dt=dirac_trace(vq3*v1*vq4*v2).simplify_indexed(sp);
1298  ex result=expand(dt*4*lq3l/s2/Pi/128);
1299
1300  ret+=result;
1301  }
1302  }
1303  lst ltest;
1304  ltest.append(conjugate(gL)==pow(abs(gL),2)/gL);
1305  ltest.append(conjugate(gR)==pow(abs(gR),2)/gR);
1306  ltest.append(conjugate(gS)==pow(abs(gS),2)/gS);
1307  ltest.append(conjugate(gP)==pow(abs(gP),2)/gP);
1308  ltest.append(conjugate(gA)==pow(abs(gA),2)/gA);
1309
1310  return pow(meson.decay_factor,2)*collect_common_factors(expand(ret.subs(conjtoabs).subs(ltest)));
1311  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1312 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::mesonmixing ( ex  mesonmass,
const Fermion &  f1,
const Fermion &  f2
) const
inline

Definition at line 1435 of file BGL.h.

References BGLmodels::Boson::mass, and BGLmodels::Boson::s.

1435  {
1436
1437  ex ret=0;
1438
1439  ex v1=0, v2=0;
1440  ex mq1=mixes.mass(f1),mq2=mixes.mass(f2);
1441  ex m2q1=mq1*mq1, m2q2=mq2*mq2;
1442
1443  for(uint i=0;i<bosons.size();i++)
1444  if(bosons[i].s==0){
1445  ex a=(bosons[i].couplingdaggerR(f2,f1)-bosons[i].couplingdaggerL(f2,f1));
1446  v1=v1+pow(a/bosons[i].mass,2);
1447
1448  ex b=(bosons[i].couplingdaggerR(f2,f1)+bosons[i].couplingdaggerL(f2,f1));
1449  v2=v2+pow(b/bosons[i].mass,2);
1450  }
1451
1452  ex fc=mesonmass/(mixes.massnum(f1)+mixes.massnum(f2));
1453  fc=pow(fc,2);
1454
1455  ret=2*(-v1*(1+11*fc)+v2*(1+fc))*mesonmass/96;
1456
1457  return collect_common_factors(ret.subs(conjtoabs));
1458  //return expand(ret.subs(lst(exp(-I*wild())==1/exp(I*wild()),sin(wild())==sqrt(1-pow(cos(wild()),2)))));
1459 }
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::Mixes::massnum
double massnum(const Fermion &f) const
Definition: Formulas.h:179
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
ex BGLmodels::BGL::tautomu_tautoe ( ) const
inline

Definition at line 1117 of file BGL.h.

References BGLmodels::fElectron, BGLmodels::Fermion::flavour, BGLmodels::fMuon, BGLmodels::fTau, BGLmodels::iDown, BGLmodels::iUp, BGLmodels::Boson::mass, BGLmodels::Boson::s, BGLmodels::sScalar, BGLmodels::sVector, and BGLmodels::tLepton.

1117  {
1118
1119  ex ret1=0,ret2=0, rety1=0, rety2=0;
1120
1121  Fermion f1(tLepton,iDown,fTau);
1122  Fermion f31(tLepton,iDown,fMuon);
1123  Fermion f32(tLepton,iDown,fElectron);
1124
1125  Fermion f2(tLepton,iUp);
1126  Fermion f4(tLepton,iUp);
1127
1128
1129  for(uint k=fElectron;k<=fTau;k++){
1130  f2.flavour=(FFlavour)k;
1131  for(uint l=fElectron;l<=fTau;l++){
1132  f4.flavour=(FFlavour)l;
1133  ex x1=0, x2=0, y1=0, y2=0;
1134  for(uint i=0;i<bosons.size();i++){
1135  if(bosons[i].s==sScalar) {
1136  x1+=bosons[i].couplingdaggerR(f2,f1)*bosons[i].couplingL(f31,f4)/pow(bosons[i].mass,2);
1137  x2+=bosons[i].couplingdaggerR(f2,f1)*bosons[i].couplingL(f32,f4)/pow(bosons[i].mass,2);
1138  }
1139  else if(bosons[i].s==sVector) {
1140  y1+=bosons[i].couplingdaggerL(f2,f1)*bosons[i].couplingL(f31,f4)/pow(bosons[i].mass,2);
1141  y2+=bosons[i].couplingdaggerL(f2,f1)*bosons[i].couplingL(f32,f4)/pow(bosons[i].mass,2);
1142  }
1143  }
1144  ret1+=(x1*y1.conjugate()).real_part();
1145  ret2+=(x2*y2.conjugate()).real_part();
1146  rety1+=y1*y1.conjugate();
1147  rety2+=y2*y2.conjugate();
1148  }}
1149  ret2=(ret2/rety2*mixes.mass(f32)/mixes.mass(f1)).subs(conjtoabs);
1150  ret1=(ret1/rety1*mixes.mass(f31)/mixes.mass(f1)).subs(conjtoabs);
1151  for(uint i=0;i<3;i++){
1152  ret1=collect_common_factors(expand(ret1.subs(pow(abs(mixes.V[0][2][i]),2)==1-pow(abs(mixes.V[0][1][i]),2)-pow(abs(mixes.V[0][0][i]),2))));
1153  ret2=collect_common_factors(expand(ret2.subs(pow(abs(mixes.V[0][2][i]),2)==1-pow(abs(mixes.V[0][1][i]),2)-pow(abs(mixes.V[0][0][i]),2))));
1154  }
1155
1156  ex x=pow(mixes.mass(f31)/mixes.mass(f1),2);
1157  ex F1=1-8*x+8*pow(x,3)-pow(x,4)-12*pow(x,2)*log(x);
1158  ex g1=1+9*x-9*pow(x,2)-pow(x,3)+6*x*(1+x)*log(x);
1159  ex N1=1+gRR2(f1,f31)/4;
1160
1161  x=pow(mixes.mass(f32)/mixes.mass(f1),2);
1162
1163  ex F2=1-8*x+8*pow(x,3)-pow(x,4)-12*pow(x,2)*log(x);
1164  ex g2=1+9*x-9*pow(x,2)-pow(x,3)+6*x*(1+x)*log(x);
1165  ex N2=1+gRR2(f1,f32)/4;
1166
1167  return collect_common_factors(N1*(F1+2/N1*ret1*g1)/N2/(F2+2/N2*ret2*g2)*F2/F1);
1168 }
BGLmodels::Mixes::V
vector< Matrix > V
Definition: Formulas.h:204
uint
unsigned int uint
Definition: script.cpp:4
BGLmodels::BGL::mixes
const Mixes mixes
Definition: BGL.h:1505
BGLmodels::Mixes::mass
ex mass(const Fermion &f) const
Definition: Formulas.h:178
BGLmodels::BGL::bosons
vector< Boson > bosons
Definition: BGL.h:1495
BGLmodels::BGL::gRR2
ex gRR2(const Fermion &f1, const Fermion &f3) const
Definition: BGL.h:1085
BGLmodels::BGL::conjtoabs
lst conjtoabs
Definition: BGL.h:1506
double BGLmodels::BGL::topBranchingRatio ( double *  xx,
double *  p
)
inline

Definition at line 1482 of file BGL.h.

1482  {
1483  return ex_to<numeric>(BR_toptoHq.subs(lst(tanb==pow(10.0,xx[0]),McH==xx[1])).evalf()).to_double();
1484 }
BGLmodels::BGL::BR_toptoHq
ex BR_toptoHq
Definition: BGL.h:1500
BGLmodels::BGL::McH
const possymbol McH
Definition: BGL.h:1493
BGLmodels::BGL::tanb
const possymbol tanb
Definition: BGL.h:1493
int BGLmodels::BGL::veto ( const parameters &  p,
int  max = 0
) const
inlinevirtual

Reimplemented from Model.

Definition at line 741 of file BGL.h.

References parameters::isvalid().

741  {
742  if(!p.isvalid()) return 1;
743  if(max==1){
744  double mr=p[1].value+p[2].value;
745  if(mr<10 || mr>10000) return 1;
746  mr+=p[3].value;
747  if(mr<10 || mr>10000) return 1;
748  return 0;
749  }
750  else{
751  double mr=p[1].value+p[2].value;
752  if(mr<10 || mr>mmmax) return 1;
753  mr+=p[3].value;
754  if(mr<10 || mr>mmmax) return 1;
755  return 0;
756  }
757  }
BGLmodels::BGL::mmmax
double mmmax
Definition: BGL.h:1512
parameters::isvalid
bool isvalid() const
checks if all the values are between their minimums and maximums
Definition: model.h:193

Here is the call graph for this function:

ex BGLmodels::BGL::Y ( ex  x) const
inline

Definition at line 660 of file BGL.h.

660  {
661  return 1.0113*x/8/(1-x)*(4-x+3*x*log(x)/(1-x));
662  }

Member Data Documentation

ex BGLmodels::BGL::alpha

Definition at line 1492 of file BGL.h.

vector<int> BGLmodels::BGL::BGLtype

Definition at line 1510 of file BGL.h.

vector< Boson > BGLmodels::BGL::bosons

Definition at line 1495 of file BGL.h.

ex BGLmodels::BGL::BR_Htotaunu

Definition at line 1499 of file BGL.h.

Referenced by main().

ex BGLmodels::BGL::BR_toptoHq

Definition at line 1500 of file BGL.h.

ex BGLmodels::BGL::Btaunu

Definition at line 1498 of file BGL.h.

ex BGLmodels::BGL::BtoD2taunuR

Definition at line 1503 of file BGL.h.

ex BGLmodels::BGL::BtoDtaunuR

Definition at line 1502 of file BGL.h.

ex BGLmodels::BGL::BtotaunuR

Definition at line 1501 of file BGL.h.

calcuBmumu* BGLmodels::BGL::cBmumu

Definition at line 1514 of file BGL.h.

Referenced by main().

calcuBmumu* BGLmodels::BGL::cBsmumu

Definition at line 1515 of file BGL.h.

Referenced by main().

lst BGLmodels::BGL::conjtoabs

Definition at line 1506 of file BGL.h.

ex BGLmodels::BGL::cos2

Definition at line 1492 of file BGL.h.

const possymbol BGLmodels::BGL::cp

Definition at line 1493 of file BGL.h.

const constant BGLmodels::BGL::FB

Definition at line 1491 of file BGL.h.

const constant BGLmodels::BGL::FBs

Definition at line 1491 of file BGL.h.

const constant BGLmodels::BGL::FD

Definition at line 1491 of file BGL.h.

const constant BGLmodels::BGL::FDs

Definition at line 1491 of file BGL.h.

const constant BGLmodels::BGL::FK

Definition at line 1491 of file BGL.h.

const constant BGLmodels::BGL::Fpi

Definition at line 1491 of file BGL.h.

ex BGLmodels::BGL::g

Definition at line 1492 of file BGL.h.

const possymbol BGLmodels::BGL::GF

Definition at line 1489 of file BGL.h.

int BGLmodels::BGL::iBD2taunu

Definition at line 1509 of file BGL.h.

int BGLmodels::BGL::iBDtaunu

Definition at line 1509 of file BGL.h.

int BGLmodels::BGL::iBtaunu

Definition at line 1509 of file BGL.h.

const constant BGLmodels::BGL::MB0

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MBp

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MBs0

Definition at line 1490 of file BGL.h.

const possymbol BGLmodels::BGL::McH

Definition at line 1493 of file BGL.h.

possymbol BGLmodels::BGL::Md[3]

Definition at line 1494 of file BGL.h.

const constant BGLmodels::BGL::MD0

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MDp

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MDs0

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MDsp

Definition at line 1490 of file BGL.h.

const possymbol BGLmodels::BGL::Mh

Definition at line 1489 of file BGL.h.

const possymbol BGLmodels::BGL::MI

Definition at line 1493 of file BGL.h.

const Mixes BGLmodels::BGL::mixes

Definition at line 1505 of file BGL.h.

const constant BGLmodels::BGL::MK0

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::MKp

Definition at line 1490 of file BGL.h.

double BGLmodels::BGL::mmmax

Definition at line 1512 of file BGL.h.

Referenced by main().

const constant BGLmodels::BGL::Mpi0

Definition at line 1490 of file BGL.h.

const constant BGLmodels::BGL::Mpip

Definition at line 1490 of file BGL.h.

const possymbol BGLmodels::BGL::MR

Definition at line 1493 of file BGL.h.

possymbol BGLmodels::BGL::Mu[3]

Definition at line 1494 of file BGL.h.

realsymbol BGLmodels::BGL::mu

Definition at line 1507 of file BGL.h.

const possymbol BGLmodels::BGL::MW

Definition at line 1489 of file BGL.h.

const possymbol BGLmodels::BGL::MZ

Definition at line 1489 of file BGL.h.

const double BGLmodels::BGL::planck

Definition at line 1488 of file BGL.h.

Referenced by main().

lst BGLmodels::BGL::replacements

Definition at line 1497 of file BGL.h.

const possymbol BGLmodels::BGL::rho

Definition at line 1493 of file BGL.h.

double BGLmodels::BGL::stepsize

Definition at line 1512 of file BGL.h.

Referenced by main().

const possymbol BGLmodels::BGL::tanb

Definition at line 1493 of file BGL.h.

widthcalc BGLmodels::BGL::wc

Definition at line 1486 of file BGL.h.

The documentation for this class was generated from the following file:
